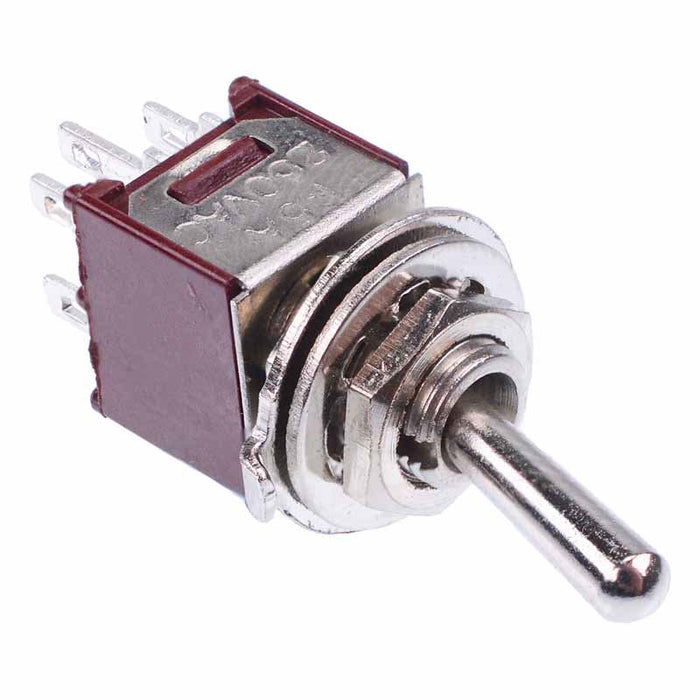

On-Off-On Subminiature Toggle Switch DPDT
SKU 482842
MPN: 482842
Availability:
368 in stock
Original price
£1.26
-
Original price
£1.26
Original price
£1.26
£1.26
£1.26
-
£1.26
Current price
£1.26
Sub-miniature On-Off-On toggle switch featuring DPDT contacts and a compact size, suitable for a wide range of applications requiring a 2 pole small packaged switch.
On-Off-On action DPDT contacts Solder terminals Rating: 3A 125VAC, 1.5A 250VAC Panel cut-out: 5mm Dimensions: 27.3 x 8.2 x 9.2mm (Height x Width x Length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | DPDT |
| Contact Rating | 3A 125VAC, 1.5A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 5mm |
| Switch Operation | On-Off-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
