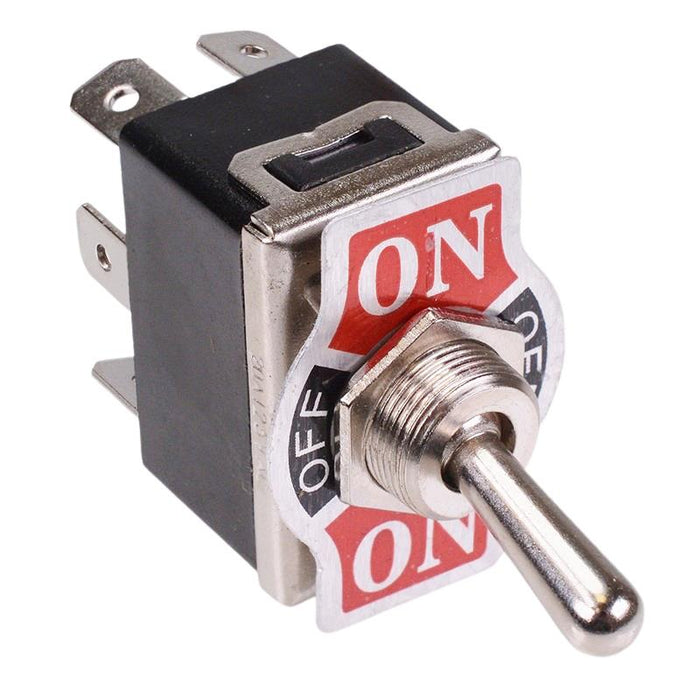

On-Off-On Toggle Switch DPDT 15A 250VAC
SKU 112016
MPN: 112016
Availability:
217 in stock
Original price
£2.58
-
Original price
£2.58
Original price
£2.58
£2.58
£2.58
-
£2.58
Current price
£2.58
Standard toggle switch with DPDT contacts and on-off-on action. The switches are suitable for panel mounting and have quick connect terminals making them ideal for a wide range of applications.
DPDT contacts On-Off-On action 6.3mm quick connect terminals Panel cut-out diameter: 12mm Maximum current: 15A Maximum voltage: 250VAC Maximum Panel Thickness: 5mm Dimensions: 56.9 x 33 x 19.8mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | DPDT |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12.2mm |
| Switch Operation | On-Off-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
