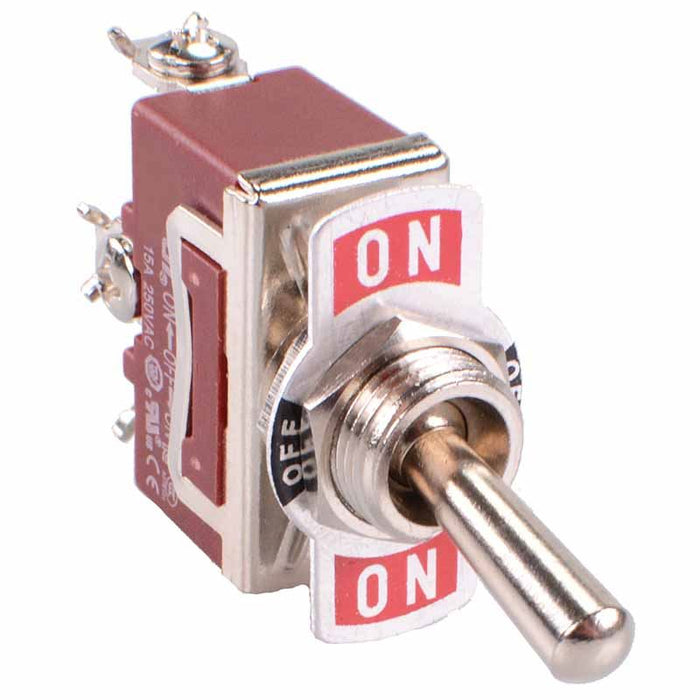

On-Off-On Toggle Switch Screw Terminals 250V 15A SPDT
SKU 482557
MPN: 482557
Availability:
216 in stock
Original price
£2.04
-
Original price
£2.04
Original price
£2.04
£2.04
£2.04
-
£2.04
Current price
£2.04
On-Off-On toggle switch featuring SPDT contacts, a reliable mechanism and screw terminals suitable for panel mount applications.
Contact current: 15A Contact voltage: 250VAC 12mm panel cut-out Screw terminals Metal lever actuator Includes nameplate CCC, CE, TUV approved Dimensions: 56 x 29 x 16mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | SPDT |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 12mm |
| Protection Level | IP40 |
| Switch Operation | On-Off-On |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
