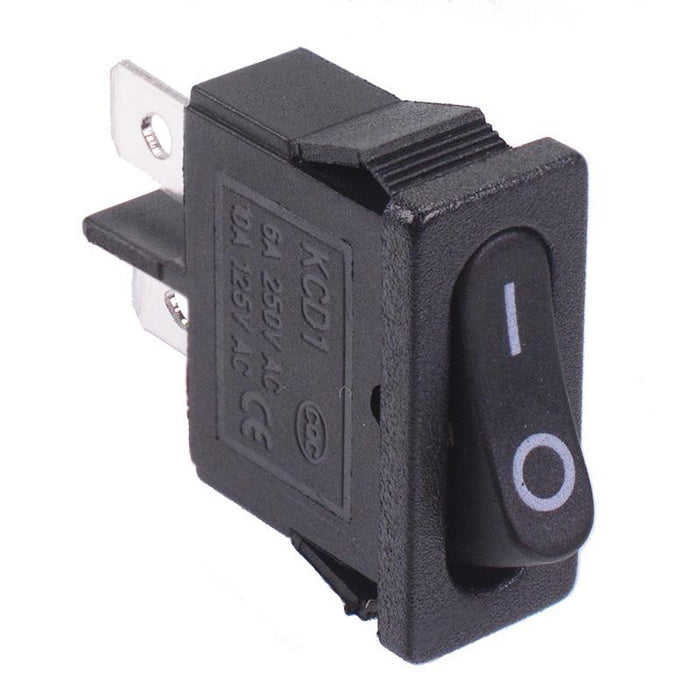

On-Off Rectangle Rocker Switch SPST
SKU 482822
MPN: 482822
Availability:
188 in stock
Original price
£0.52
-
Original price
£0.52
Original price
£0.52
£0.52
£0.52
-
£0.52
Current price
£0.52
On-Off rectangular rocker switch featuring SPST contacts and independent quick connect 4.8mm terminals. The switch is suitable for a wide range of applications including table lamp and other consumer electronics.
On-Off action SPST contacts 4.8mm quick connect terminals Panel cut-out: 19.2 x 6.8mm Dimensions: 31 x 9.6 x 21.4mm (Height x Width x Length) Rating: 10A 125VAC, 6A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC, 10A 125VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| MOQ | 5 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19.2.x 6.8mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
