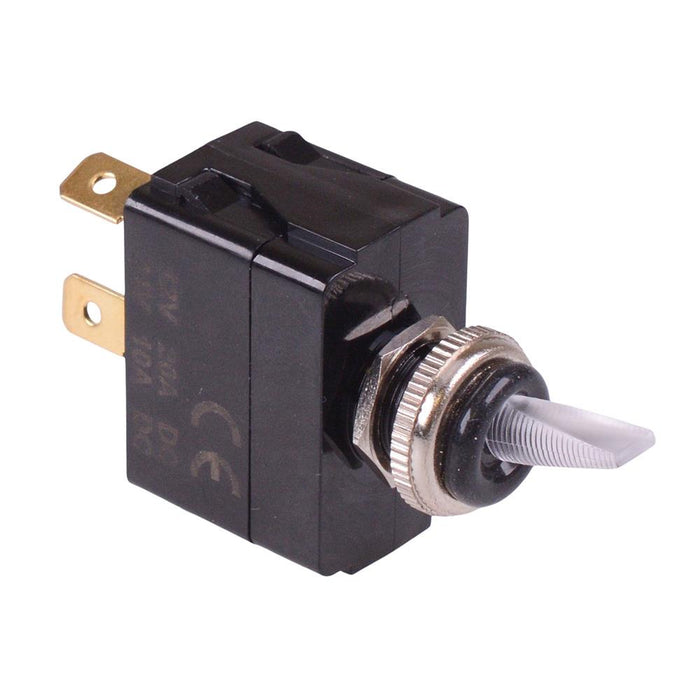

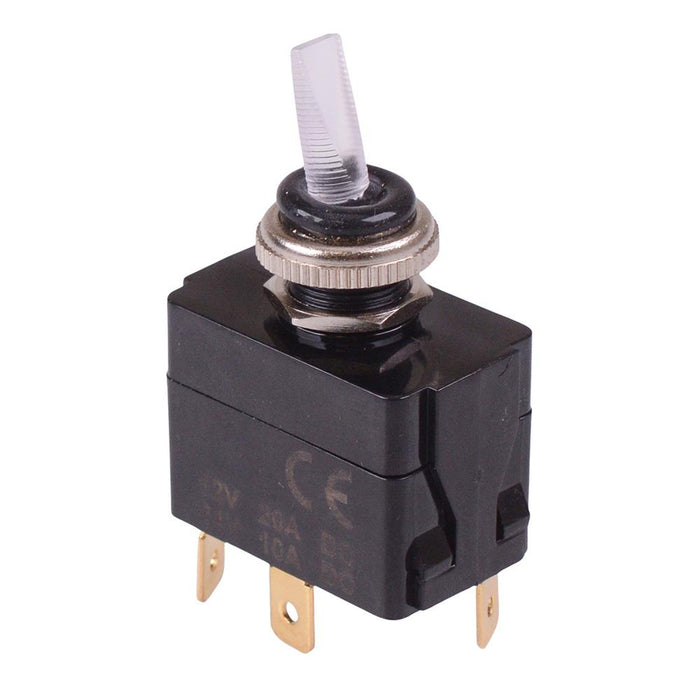

On-Off Red LED illuminated Toggle Switch 20A 12V SPST

SKU 489616

MPN: SF50770S-1

Availability:
100 in stock
Original price £3.99 - Original price £3.99
Original price
£3.99
£3.99 - £3.99
Current price £3.99
Red illuminated toggle switch featuring On-Off action and SPST contacts. The switch features a waterproof boot nut and 6.3mm quick connect terminals. The switch is suitable for a wide range of 12V or 24V automotive applications.

  • On-Off action
  • SPST contacts

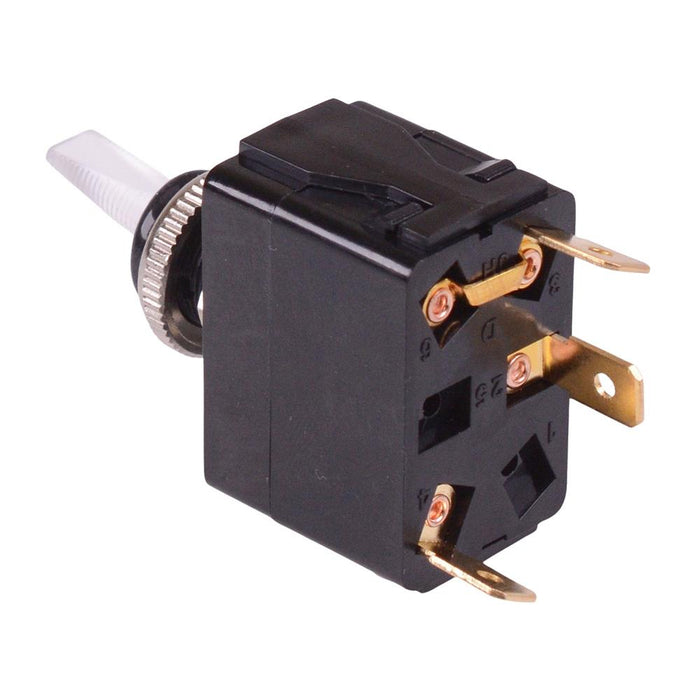

  • 6.3mm quick connect terminals
  • Rating: 12VDC 20A, 24VDC 10A
  • Panel cut-out: 12mm
  • Dimensions: 62.1 x 35.3 x 21.1mm (height x length x width)
  • Specification
    Actuation Latching
    Back Order Lead Time 120 Days
    Contact Configuration SPST
    Contact Rating 20A 12VDC, 10A 24VDC
    Current Rating 20A
    Illuminated Yes
    Illumination Colour Red
    Illumination Voltage 12V / 24V
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Panel Cut Out 12mm
    Panel Thickness 3mm
    Switch Operation On-Off
    Terminal Type Quick Connect
    Voltage Rating 24VDC
