On-Off Red LED Rectangle Rocker Switch SPST 16A R13-66B4-02
by SCI
SKU 490816
MPN: R13-66B4-02
Availability:
500 in stock
Original price
£1.27
-
Original price
£1.27
Original price
£1.27
£1.27
-
£1.27
Current price
£1.27

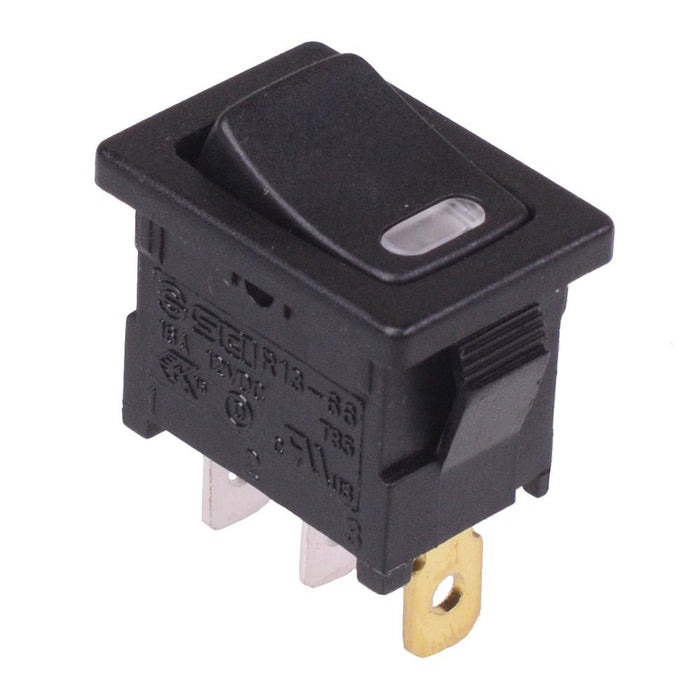

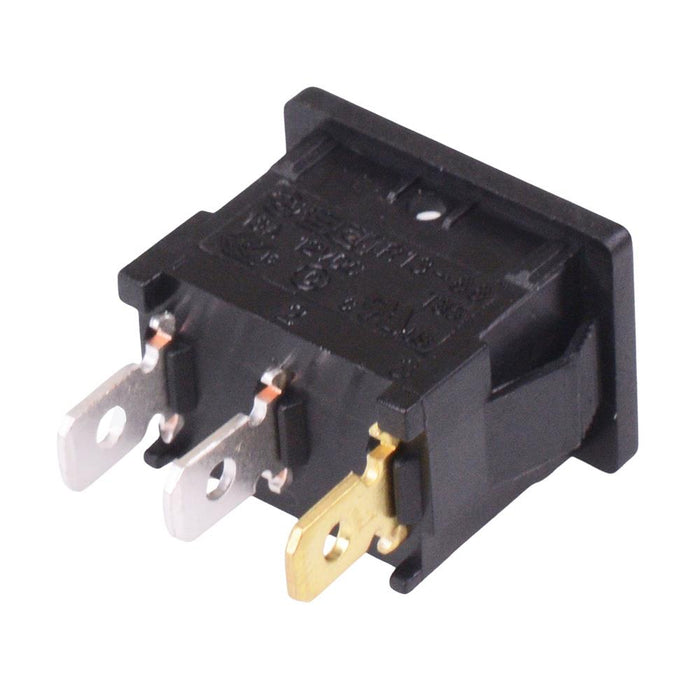

The R13-66B4 is an On-Off rocker switch in a compact rectangular package with red 12V LED illumination. The switch features SPST contacts and quick connect terminals, suited for automotive and other 12V applications.
On-Off operation Contacts: SPST Panel cut-out: 19.2 x 13.2mm Rating: 16A 12VDC illumination voltage: 12VDC Terminals: 4.8mm quick connect Dimensions: 27.1 x 21 x 15mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 16A 12VDC |
| Current Rating | 16A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 19.2 x 13.2mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
