On-Off Round 20mm Rocker Switch SPST 16A 250VAC
by Canal
SKU 491874
MPN: MR2-110R5W-NBBB-2BNC
Availability:
970 in stock
Original price
£0.73
-
Original price
£0.73
Original price
£0.73
£0.73
£0.73
-
£0.73
Current price
£0.73

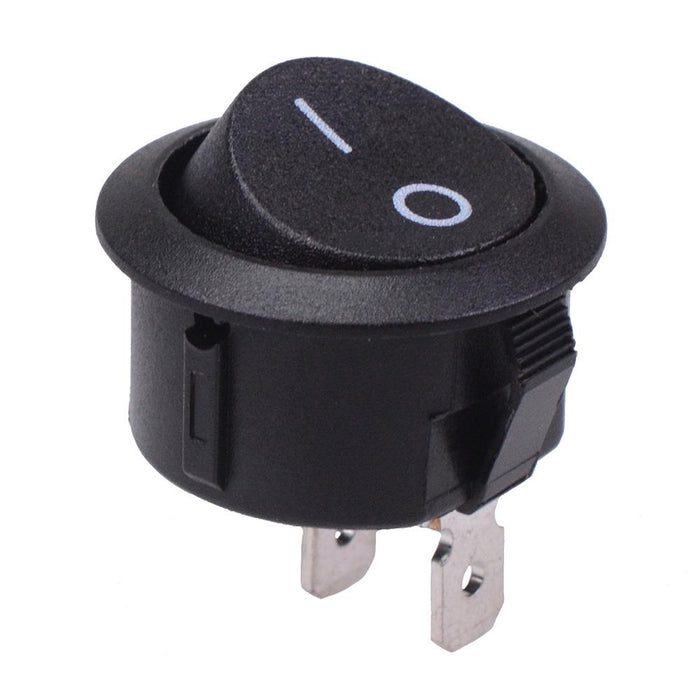

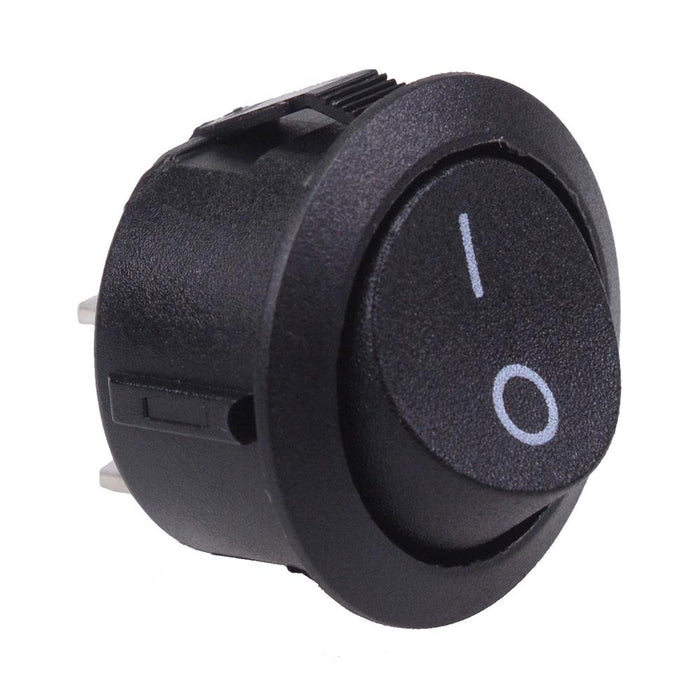

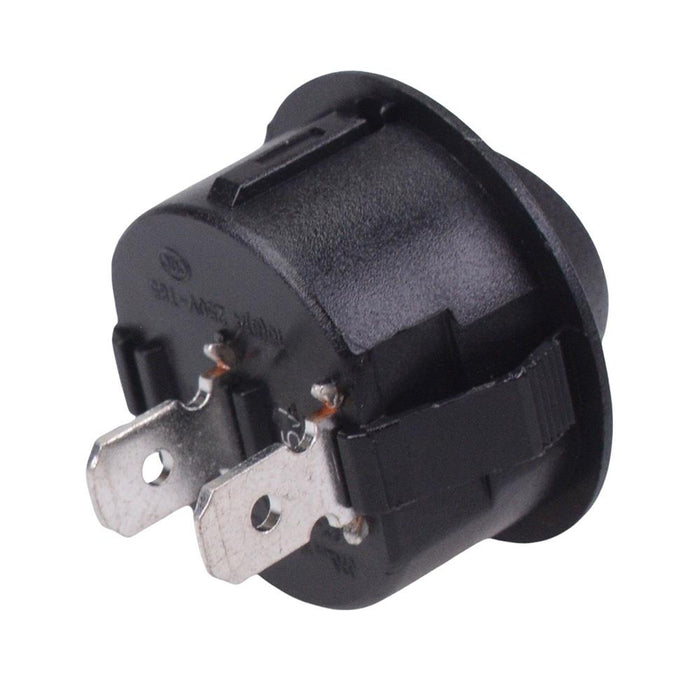

MR2 circular rocker switch featuring On-Off function and SPST contacts. The switch features a shallow design and small behind panel depth, suitable for use in compact spaces. The switch features 16A current rating and is suitable for a wide range of switching applications.
Function: On-Off Contacts: SPST Panel cut-out: 20mm Terminals: 4.8mm quick connect Rating: 16(8)A 250VAC Dimensions: 24.5 x 23mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Rating | 16(8)A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 20mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
