On-Off Round Rocker Switch DPST 230V
SKU 482817
MPN: 482817
Availability:
Out of stock
Sold out
Original price
£0.79
-
Original price
£0.79
Original price
£0.79
£0.79
£0.79
-
£0.79
Current price
£0.79

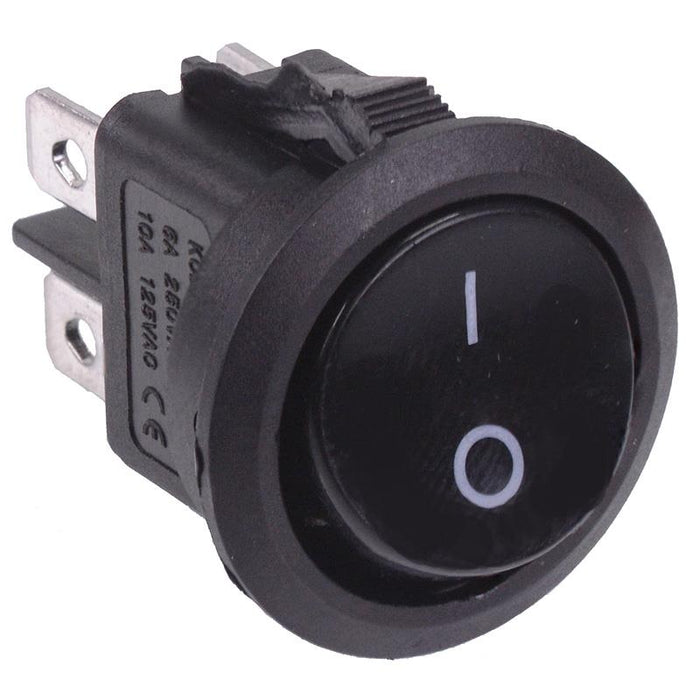

Circular rocker switch featuring DPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.
On-off action DPST contacts 230VAC illumination 4.8mm quick connect terminals Panel cut-out: 20mm Dimensions: 29.2 x 23mm (Height x Diameter) Rating: 10A 125VAC, 6A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Contact Configuration | DPST |
| Contact Rating | 6A 250VAC, 10A 125VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
