On-Off SPST Toggle Switch 250V AC 15A
SKU 112034
MPN: 112034
Availability:
332 in stock
Original price
£2.09
-
Original price
£2.09
Original price
£2.09
£2.09
£2.09
-
£2.09
Current price
£2.09

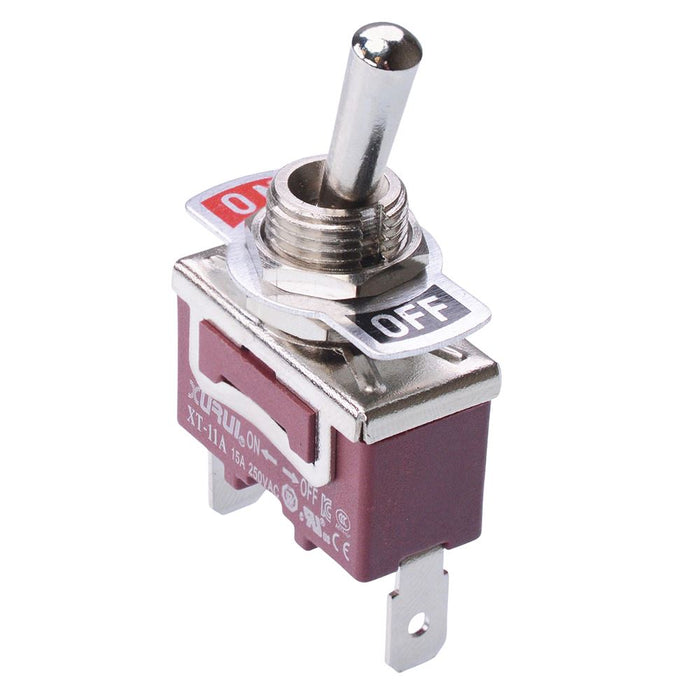

SPST toggle switch with a On-Off operation providing a reliable mechanism suitable for panel mounting applications.
Contact current: 15A Contact voltage: 250VAC 12mm panel cut-out 6.3mm quick-connect terminals Metal lever actuator Includes nameplate CCC, CE, TUV approved Dimensions: 58 x 29 x 16mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | SPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 12mm |
| Protection Level | IP40 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
