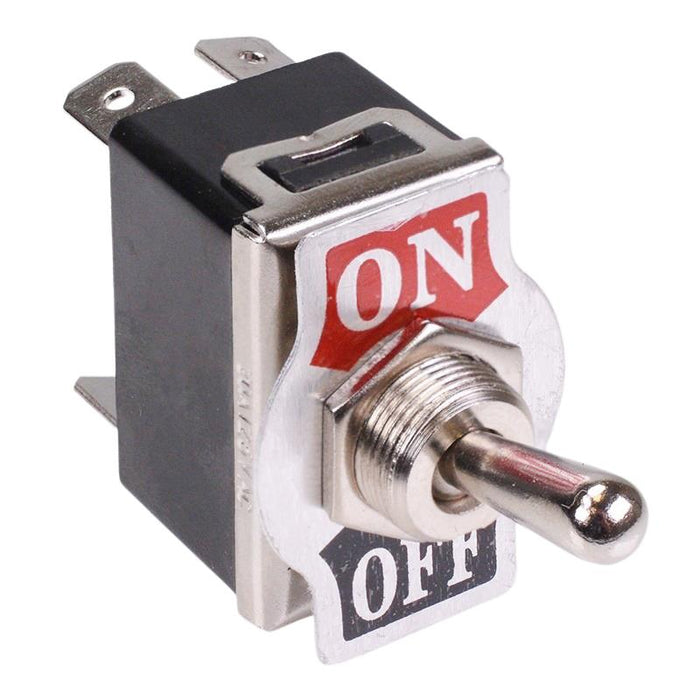

On-Off Toggle Switch DPST 15A 250VAC

On-Off Toggle Switch DPST 15A 250VAC

by Switch Electronics
SKU 112014

MPN: 112014

Availability:
16 in stock
£1.56 - £1.56
£1.56
£1.56 - £1.56
£1.56
Standard toggle switch with DPST contacts and on-off action. The switches are suitable for panel mounting and have quick connect terminals making them ideal for a wide range of applications.

  • DPST contacts
  • On-Off action
  • 6.3mm quick connect terminals
  • Panel cut-out diameter: 12mm
  • Maximum current: 15A
  • Maximum voltage: 250VAC
  • Maximum Panel Thickness: 5mm
  • Dimensions: 56.3 x 33 x 19.8mm (Height x Length x Width)
    • Download Product Data Sheet PDF
    Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Contact Configuration DPST
    Contact Rating 15A 250VAC
    Current Rating 15A
    Electrical Life 10,000 Cycles
    Illuminated No
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -25°C to +85°C
    Panel Cut Out 12.2mm
    Switch Operation On-Off
    Terminal Type Quick Connect
    Voltage Rating 250VAC
    Request a quote

    Customer Reviews

    Based on 2 reviews
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    P
    Peter Ashton
    lovely toggle switch

    For some reason it's really hard to find decent toggle switches, and I feel a bit iffy about ordering things from the other side of the world without being able to check on them first, so this was a nice find (and cheaper than Chinese e-marketplaces, to boot).

    P
    Peter Farrell
    Good Company to buy from

    I needed a couple of these switches then found that I could get 4 switches for a similar price from this company so a no brainer.
