On-Off Toggle Switch Screw Terminals 250V 15A DPST
SKU 482558
MPN: 482558
Availability:
62 in stock
Original price
£2.40
-
Original price
£2.40
Original price
£2.40
£2.40
£2.40
-
£2.40
Current price
£2.40

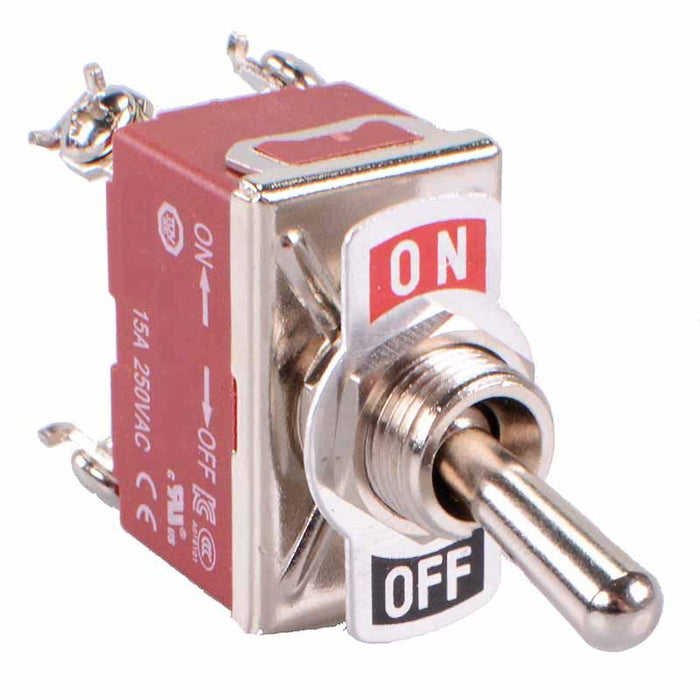

On-Off toggle switch featuring DPST contacts, a reliable mechanism and screw terminals suitable for panel mount applications.
Contact current: 15A Contact voltage: 250VAC 12mm panel cut-out Screw terminals Metal lever actuator Includes nameplate CCC, CE, TUV approved Dimensions: 59 x 32.5 x 20mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | DPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 12mm |
| Protection Level | IP40 |
| Switch Operation | On-Off |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
