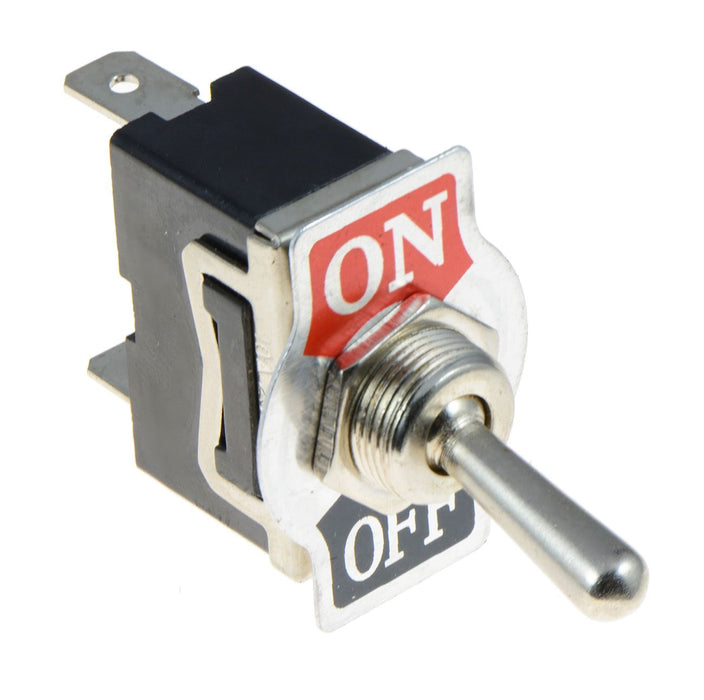

On-Off Toggle Switch SPST 15A 250VAC
SKU 112020
MPN: 112020
Availability:
896 in stock
Original price
£1.53
-
Original price
£1.53
Original price
£1.53
£1.53
£1.53
-
£1.53
Current price
£1.53
Standard toggle switch with SPST contacts and on-off action. The switches are suitable for panel mounting and have quick connect terminals making them ideal for a wide range of applications.
SPST contacts On-Off action 6.3mm quick connect terminals Panel cut-out diameter: 12mm Maximum current: 15A Maximum voltage: 250VAC Maximum Panel Thickness: 5mm Dimensions: 56.3 x 29 x 15.8mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | SPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
