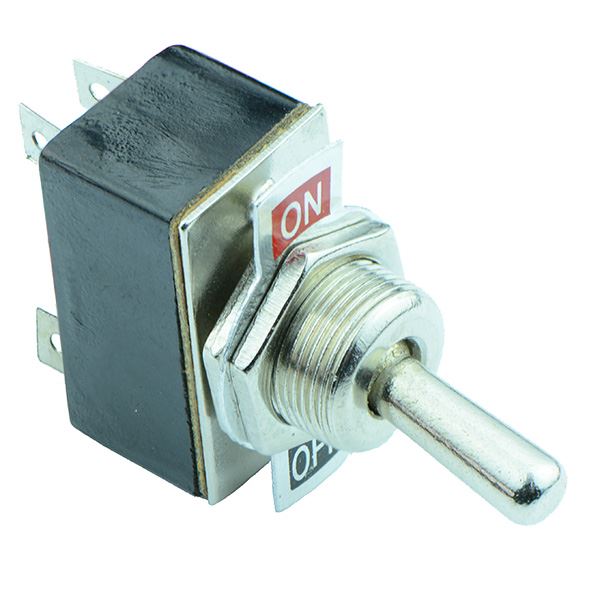

On-Off Toggle Switch SPST 2A
SKU 551775
MPN: 551775
Availability:
86 in stock
Original price
£0.82
-
Original price
£0.82
Original price
£0.82
Inc VAT
£0.82
-
£0.82
Current price
£0.82
Inc VAT
On-off toggle switch featuring SPST contacts and solder terminals. The switches are manufactured from bakelite and are suitable for a wide range of applications.
On-Off operation SPST NO/NC contacts Rating: 2A 250VAC Panel cut-out: 12mm
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Contact configuration | DPST |
| Contact rating | 2A 250VAC |
| Current rating | 2A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Material | Bakelite |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 250VAC |
