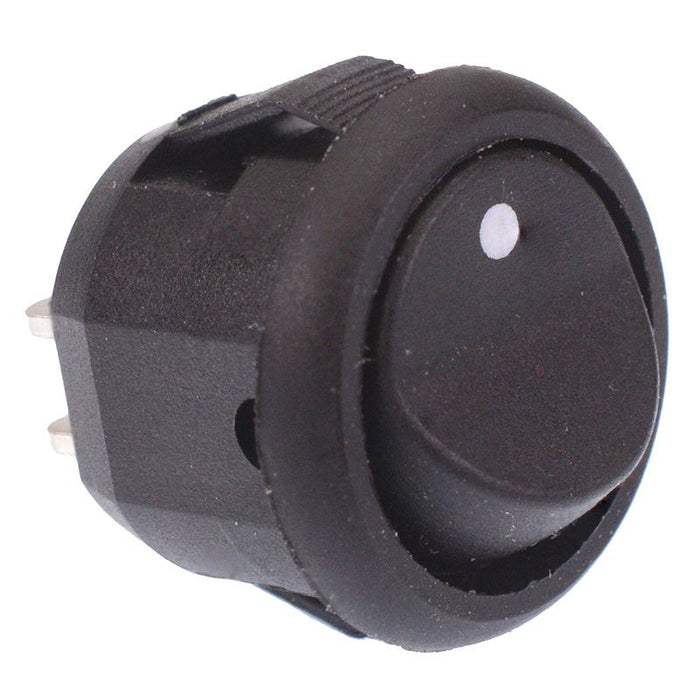

On-Off Ultra Miniature 13mm Round Rocker Switch SPST
by Canal
SKU 482718
MPN: SW-2737A
Availability:
487 in stock
Original price
£1.30
-
Original price
£1.30
Original price
£1.30
£1.30
£1.30
-
£1.30
Current price
£1.30
Ultra mini circular rocker switch with an On-Off action and SPST contacts, housed in a compact package requiring a 13mm panel cut-out diameter. The switch features solder terminals and snap-in mounting making them ideal for applications requiring a very small but reliable switch.

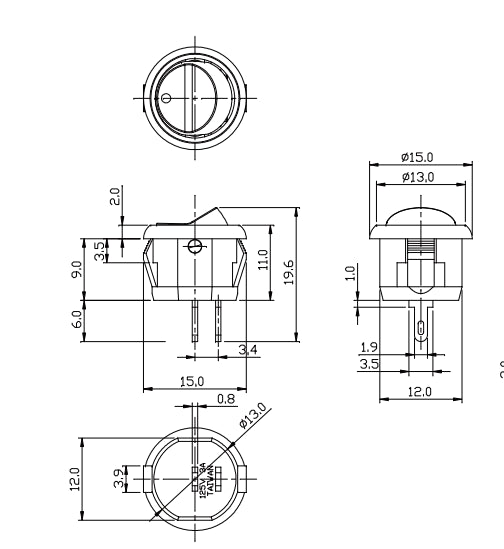

On-Off action SPST contacts Solder terminals Panel cut-out: 13mm Dimensions: 19.6 x 15mm (Height x Diameter) Rating: 3A 125VAC, 1.5A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Contact Configuration | SPST |
| Contact Rating | 3A 125VAC, 1.5A 250VAC |
| Current Rating | 3A |
| Electrical Life | 30,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 13mm |
| Panel Thickness | 2mm Maximum |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
