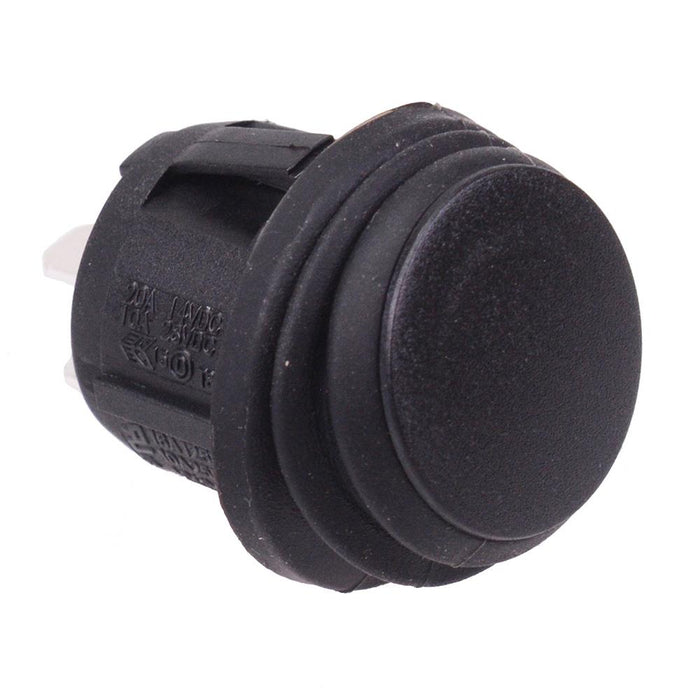

On-Off Waterproof 20mm Round Rocker Switch 10A 250VAC R13-112A8-02
by SCI
SKU 491460
MPN: R13-112A8-02-BB
Availability:
8 in stock
Original price
£1.68
-
Original price
£1.68
Original price
£1.68
£1.68
£1.68
-
£1.68
Current price
£1.68
Waterproof round rocker switch featuring SPST contacts and On-Off function. The switch requires a 20mm panel cut-out and features IP65 protection rating. The switch is rated up to 16A making it suitable for a wide range of AC applications.
Function: On-Off Contacts: SPST Panel cut-out: 20mm Panel thickness: 0.7-2.5mm Rating: 10A 250VAC. 16A 125VAC Protection rating: IP65 4.8mm quick connect terminals Dimensions: 33.9 x 24.3mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 16A 125VAC, 10A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 20.2mm |
| Panel Thickness | 0.7-3mm |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
