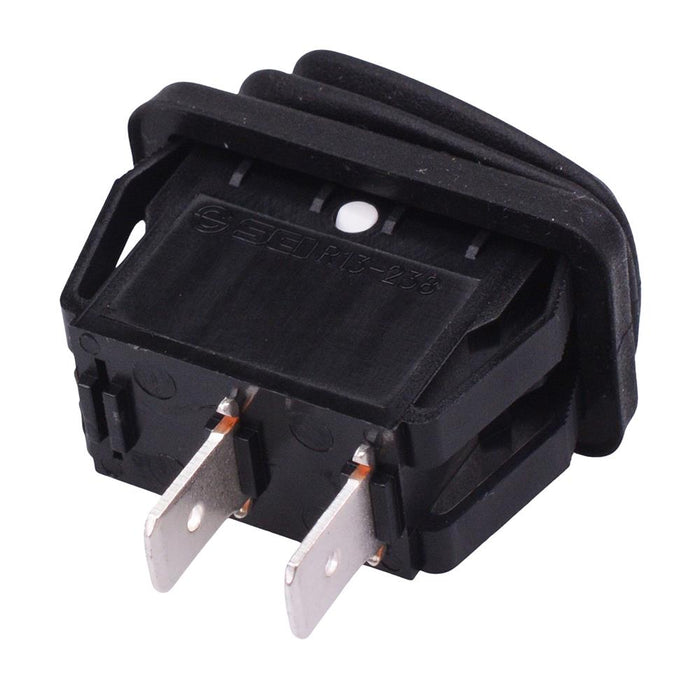

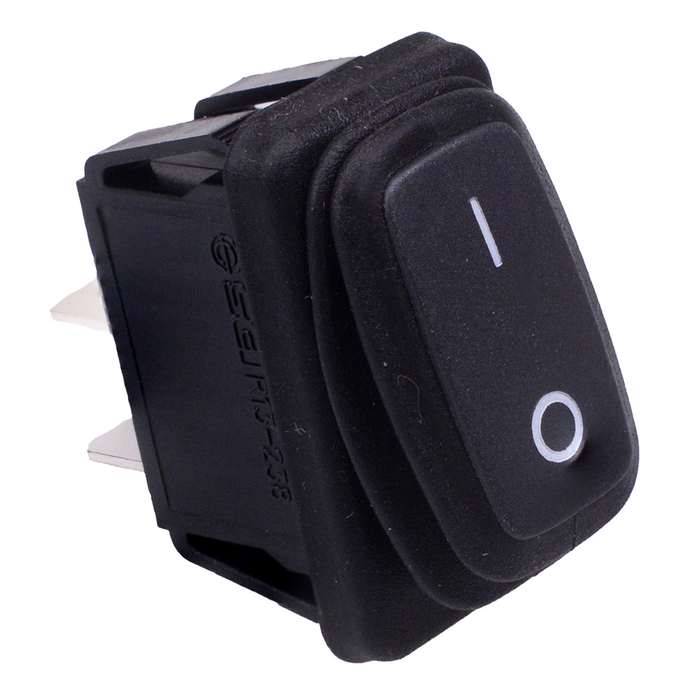

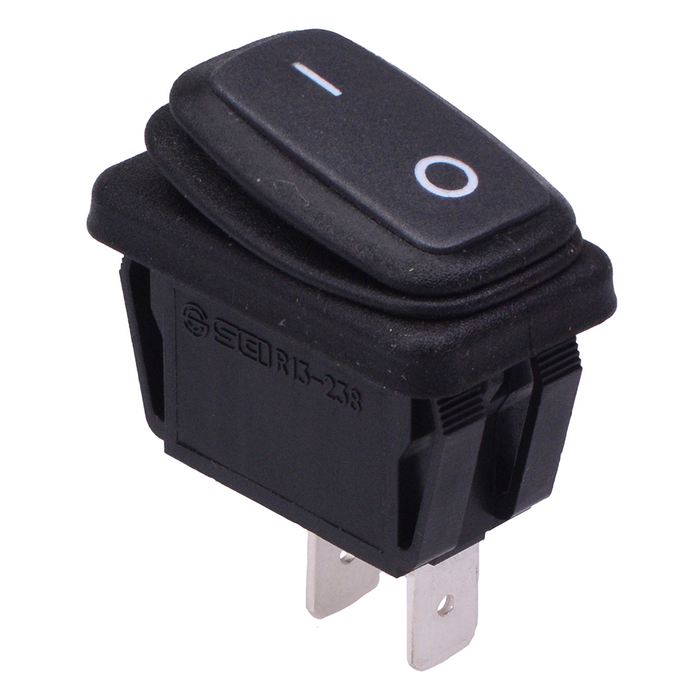

On-Off Waterproof Rectangle Rocker Switch SPST 16A R13-238A8-02
by SCI
SKU 491484
MPN: R13-238A8-02
Availability:
25 in stock
Original price
£1.73
-
Original price
£1.73
Original price
£1.73
£1.82
£1.82
-
£1.82
Current price
£1.82
R13-238A8-02 waterproof rectangle rocker switch featuring SPST contacts and On-Off function. The switch requires a 27.6 x 13.8mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated up to 20A making it suitable for a wide range of AC applications.
Function: On-Off Contacts: SPST Panel cut-out: 27.6 x 13.8mm Panel thickness: 0.75-4.5mm Rating: 20A 125VAC, 16A 250VAC 6.3mm quick connect terminals Dimensions: 31.5 x 18.5 x 35.3mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 20A 125VAC, 16A 250VAC |
| Current Rating | 20A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 27.6 x 13.8mm |
| Panel Thickness | 0.75-4.5mm |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
