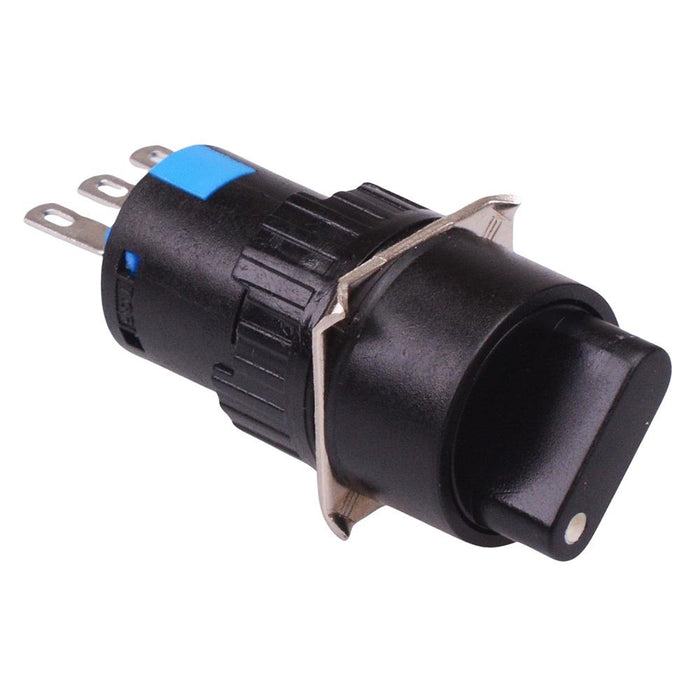

On-On 2 Position 16mm Latching Selector Switch NO/NC 3A 250V
SKU 489571
MPN: FL6-073 On-On
Availability:
47 in stock
Original price
£2.38
-
Original price
£2.38
Original price
£2.38
£2.38
£2.38
-
£2.38
Current price
£2.38
2 position round latching industrial selector switch featuring SPDT contacts, suitable for 16.2mm panel cut-outs. The switch is designed for a wide range of applications including control panels, automation, factories and general purpose uses..
Latching operation 90° 2 positions NO/NC SPDT contacts Contact rating: 3A 250V Panel cut-out: 16.2mm Panel thickness: 0.5-6mm 2.8x0.5mm solder/quick-connect terminals Dimensions: 39 x 18mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Colour | Black |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Key Index Angle | 90° |
| MOQ | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 16.2mm |
| Terminal Type | Quick connect |
| Voltage Rating | 250VAC |
