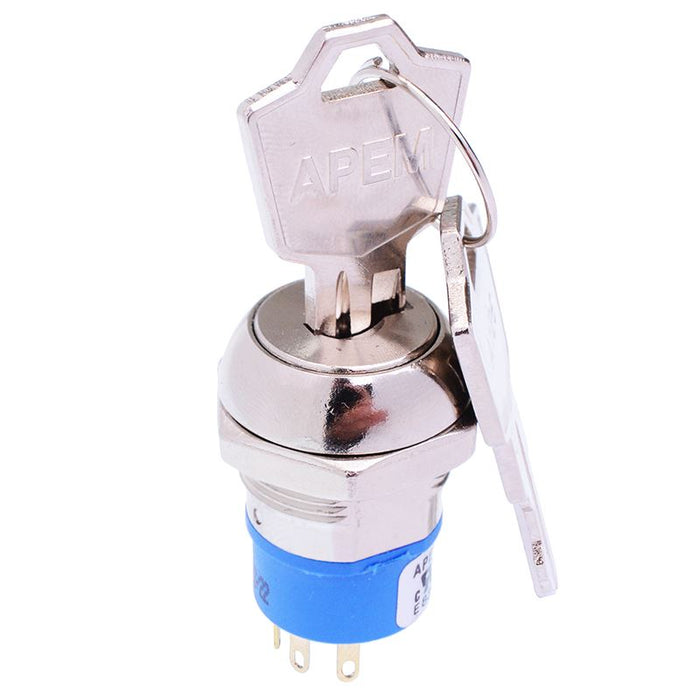

On-On 2 Way 19mm Key Switch SPDT 4A LK6NNB126N3

by APEM
SKU 485812

MPN: LK6NNB126N3

Availability:
38 in stock
Original price £11.87 - Original price £11.87
Original price
£11.87 Inc VAT
£11.87 - £11.87
Current price £11.87 Inc VAT
The LK6NNB126N3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features SPDT contacts and 2 maintained positions with key withdrawal in position 1. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

  • 2 positions
  • Maintained switching
  • SPDT contacts
  • Nickel plated finish
  • Key withdrawal in position 1
  • Panel cut-out: 19mm
  • Indexing: 90°
  • Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
  • Mechanical and electrical life: 6000 cycles at full load
  • Dimensions: 28.8 x 22mm (length x diameter)
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Nickel Plated
    Contact configuration SPDT
    Contact material Gold Plated Copper Alloy
    Contact rating 4A 125VAC / 28VDC, 2A 250VAC
    Current rating 4A @ 125VAC / 28VDC
    Electrical life 6000 Cycles
    Key index angle 90°
    Key withdrawal position 1
    Mounting style Panel Mount
    Number of positions 2
    Operating temperature -30°C to +85°C
    Panel cut out 19mm
    Product series LK
    Protection level Gold Plated Copper Alloy
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
