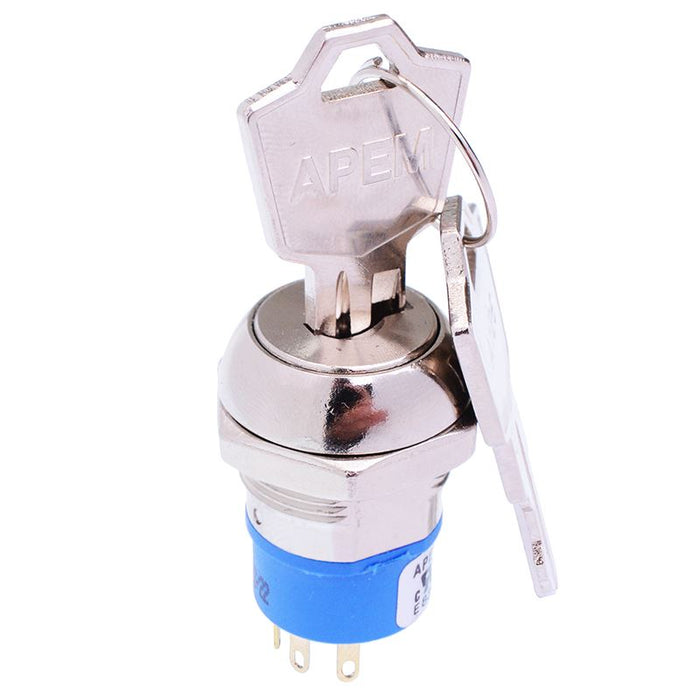

On-(On) 2 Way Momentary 19mm Key Switch SPDT 4A LK5ANB126N3

by APEM
SKU 485816

MPN: LK5ANB126N3

Availability:
27 in stock
Original price £12.53 - Original price £12.53
Original price
£12.53 Inc VAT
£12.53 - £12.53
Current price £12.53 Inc VAT
The LK5ANB126N3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features SPDT contacts and 2 positions with key withdrawal in position 1. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

  • 2 positions
  • Momentary switching in position 2
  • SPDT contacts
  • Nickel plated finish
  • Key withdrawal in position 1
  • Panel cut-out: 19mm
  • Indexing: 45°
  • Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
  • Mechanical and electrical life: 6000 cycles at full load
  • Dimensions: 28.8 x 22mm (length x diameter)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Nickel Plated
    Contact configuration SPDT
    Contact material Gold Plated Copper Alloy
    Contact rating 4A 125VAC / 28VDC, 2A 250VAC
    Current rating 4A @ 125VAC / 28VDC
    Electrical life 6000 Cycles
    Key index angle 45°
    Key withdrawal position 1
    Mounting style Panel Mount
    Number of positions 2
    Operating temperature -30°C to +85°C
    Panel cut out 19mm
    Product series LK
    Protection level Gold Plated Copper Alloy
    Switch operation On-(On)
    Terminal type Solder
    Voltage rating 250VAC
