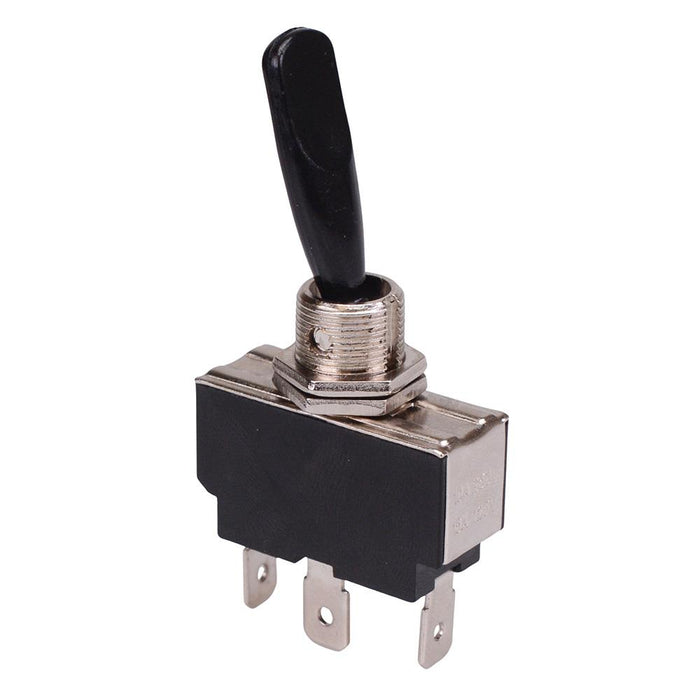

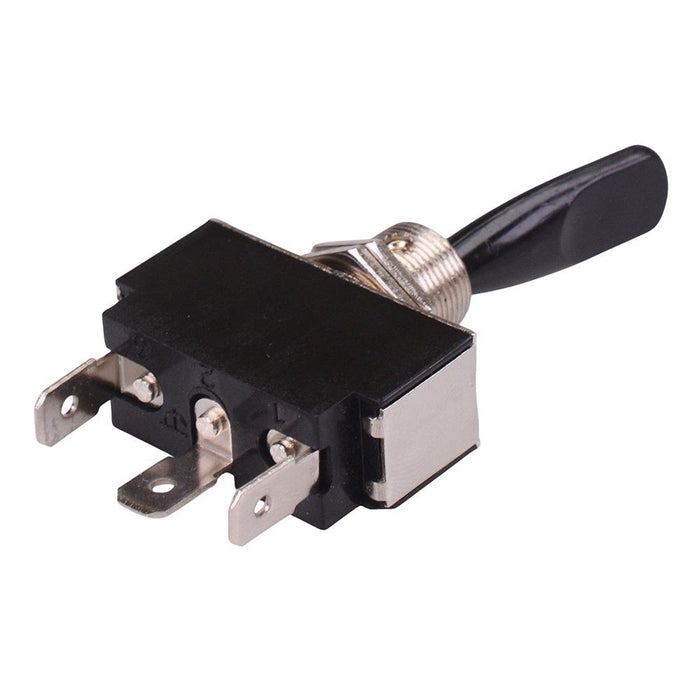

On-On Blade Paddle 12mm Toggle Switch SPDT 10A 250VAC
SKU 491649
MPN: SK3(B)-102APE
Availability:
498 in stock
Original price
£1.74
-
Original price
£1.74
Original price
£1.74
£1.74
£1.74
-
£1.74
Current price
£1.74
On-On function toggle switch featuring a black paddle handle and SPDT contacts. The switch features quick connect 6.3mm terminals and 15A currenting rating, suitable for a wide range of applications.
Function: On-On Contacts: SPDT Rating: 15A 125VAC, 10A 250VAC Panel cut-out: 12.2mm 6.3mm quick connect terminals Dimensions: 70.8 x 33.5 x 13mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 15A 125VAC, 10A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12.2mm |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
