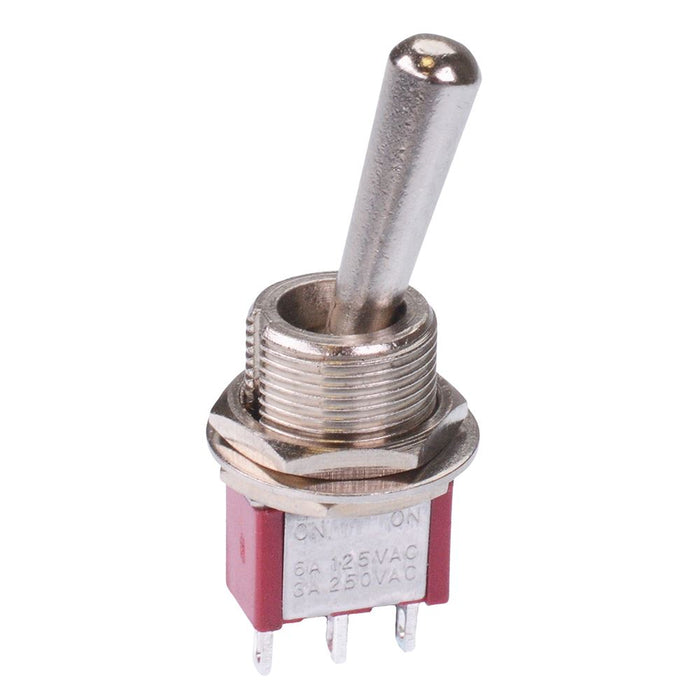

On-On Large Handle 12mm Mini Toggle Switch SPDT 3A 250V
SKU 486895
MPN: 486895
Availability:
999 in stock, ready to be shipped
Original price
£1.34
-
Original price
£1.34
Original price
£1.34
Inc VAT
£1.34
-
£1.34
Current price
£1.34
Inc VAT
On-On miniature toggle switch featuring SPDT contacts and large actuator. The switch features solder terminals and is rated up to 3A 250V, making it suitable for low power applications.
On-On operation SPDT contacts 12mm panel cut-out Rating: 3A 250VAC, 6A 125VAC
Specification
| Actuation | Latching |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A @ 250VAC |
| Electrical life | 6,000+ Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 250VAC |
