On-On Mini Horizontal PCB Slide Switch SPDT 0.3A

SKU 490360

MPN: RE-SS01-12E09A-G-4.7

Availability:
988 in stock
Original price £1.10 - Original price £1.10
Original price
£1.10
£1.10 - £1.10
Current price £1.10

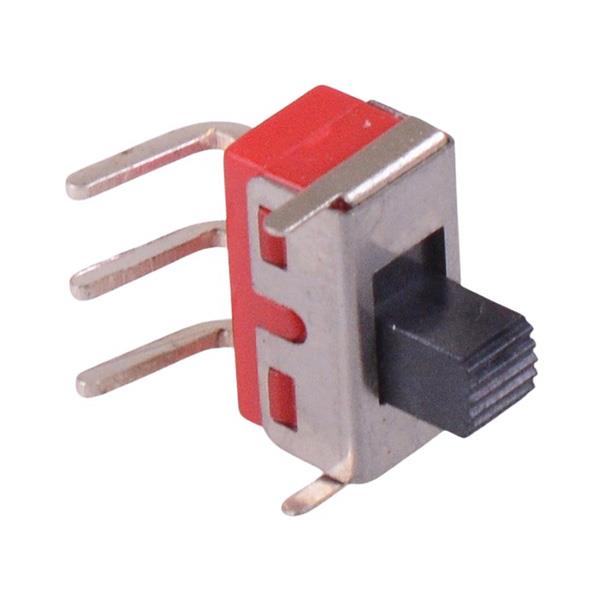

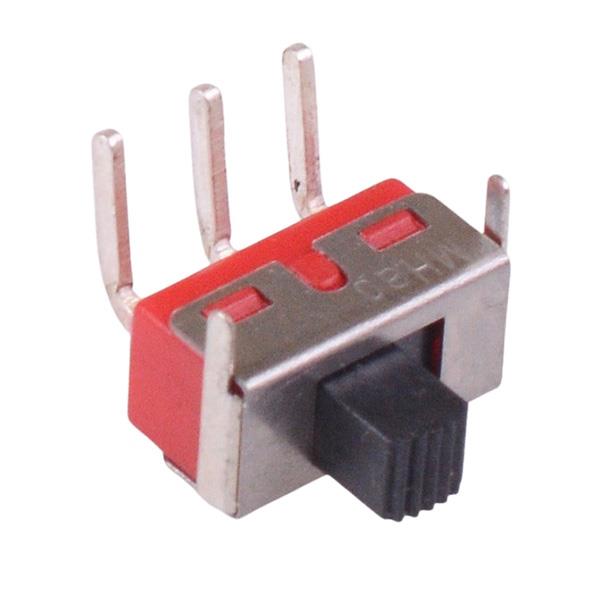

Right angle On-On miniature slide switch featuring SPDT contacts and PCB terminals. The switch features a 0.3A current rating making them ideal for through hole applications requiring a reliable switch.

  • On-On action
  • SPDT contacts
  • Through hole terminals
  • 5mm knob height
  • Rating: 0.3A 50VDC
  • Terminal pitch: 4.7mm
  • Dimensions: 13.4 x 6.4 x 6.3mm (length x width x height)
  • Specification
    Actuation Latching
    Back Order Lead Time 120 Days
    Contact Configuration SPDT
    Contact Rating 0.3A 50VDC
    Current Rating 0.3A
    Electrical Life 10,000 Cycles
    MOQ 1
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 2
    Pitch 4.7mm
    Switch Operation On-On
    Terminal Type PCB
    Voltage Rating 50VDC
