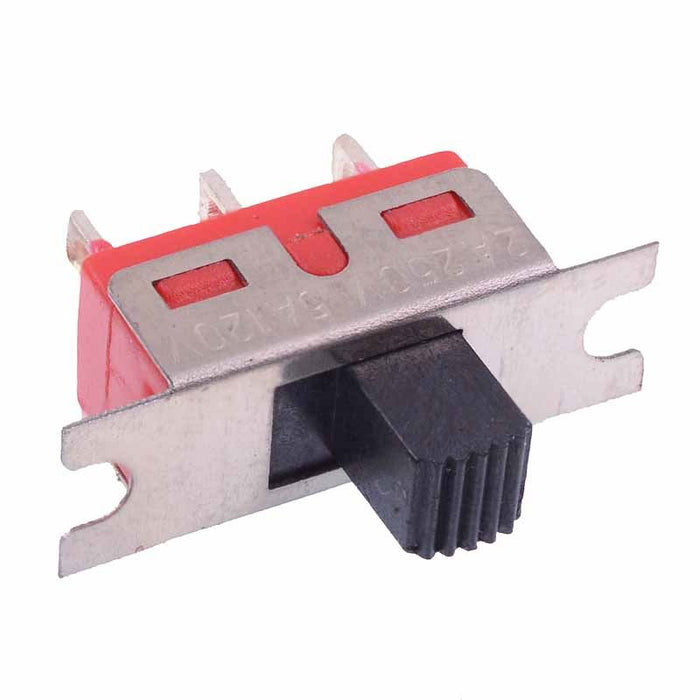

On-On Mini Slide Switch SPDT 5A
SKU 483106
MPN: 483106
Availability:
113 in stock
Original price
£0.98
-
Original price
£0.98
Original price
£0.98
£1.11
£1.11
-
£1.11
Current price
£1.11
On-On miniature slide switch featuring SPDT contacts and solder terminals. The switch features a 5A current rating making them ideal for higher current applications requiring a small packaged switch.
On-On action SPDT contacts Solder terminals 5mm knob height Rating: 3A 250VAC, 5A 125VAC / 28VDC Mounting hole pitch: 17.5mm Dimensions: 19.56 x 6.6 x 15.3mm (Length x Width x Height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPDT |
| Contact Rating | 2A 250VAC, 5A 125VAC / 28VDC |
| Current Rating | 5A |
| Electrical Life | 30,000 Cycles |
| Material | DAP & Stainless Steel |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
