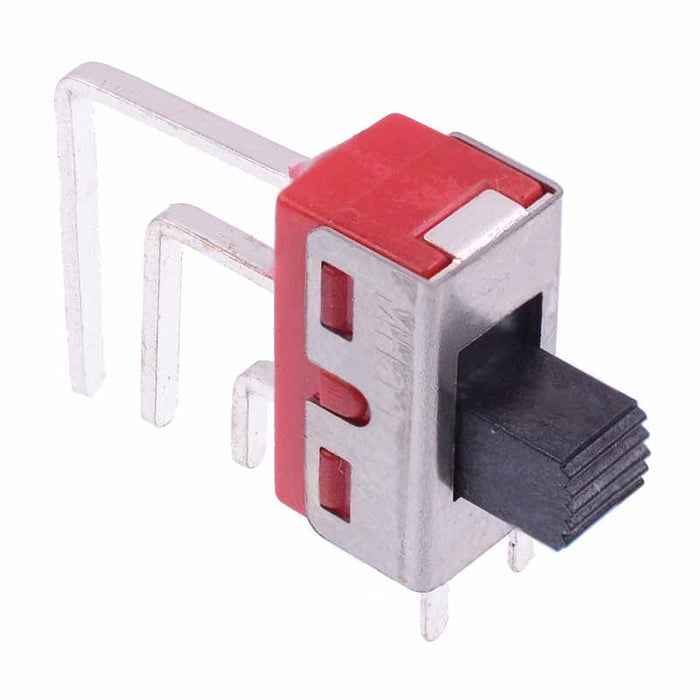

On-On Mini Vertical PCB Slide Switch SPDT 5A

SKU 483110

MPN: 483110

Availability:
900 in stock
Original price £0.94 - Original price £0.94
Original price
£0.94 Inc VAT
£0.94 - £0.94
Current price £0.94 Inc VAT
On-On miniature slide switch featuring SPDT contacts and solder terminals. The switch features a 5A current rating and is suitable for mounting vertically to the PCB.

  • On-On action
  • SPDT contacts
  • Solder terminals
  • 5mm knob height
  • Rating: 3A 250VAC, 5A 125VAC / 28VDC
  • Terminal pitch: 4mm
  • Body dimensions: 11.3 x 7 x 12.8mm (Length x Width x Height)
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Contact configuration SPDT
    Contact rating 2A 250VAC, 5A 125VAC / 28VDC
    Current rating 5A
    Electrical life 30,000 Cycles
    Material DAP & Stainless Steel
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -30°C to +85°C
    Pitch 4mm
    Switch operation On-On
    Terminal type PCB
    Voltage rating 250VAC
