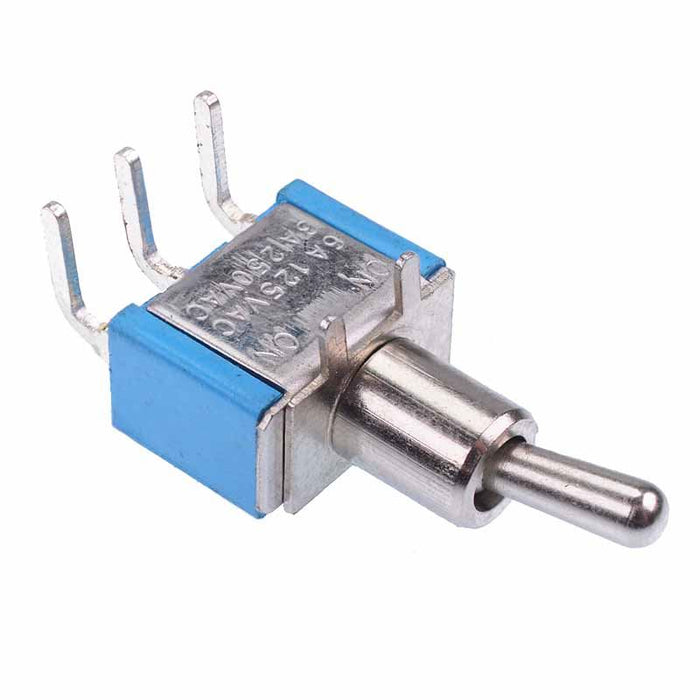

On-On Miniature Horizontal PCB Toggle Switch SPDT

SKU 482844

MPN: 482844

Back Order Availability: 40 Days

Availability:
310 in stock, ready to be shipped
Original price £0.54 - Original price £0.54
Original price
£0.54 Inc VAT
£0.54 - £0.54
Current price £0.54 Inc VAT
Mini On-On toggle switch featuring SPDT contacts and a compact size, suitable for mounting horizontally directly to a PCB.

  • On-On action
  • SPDT contacts
  • Solder PCB terminals
  • Rating: 6A 125VAC, 3A 250VAC
  • Terminal pitch: 4.7mm
  • Dimensions: 27 x 13.2 x 11.1mm (Length x Width x Height)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration SPDT
    Contact rating 6A 125VAC, 3A 250VAC
    Current rating 6A @ 125VAC
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Pitch 4.7mm
    Switch operation On-On
    Terminal type PCB
    Voltage rating 250VAC
