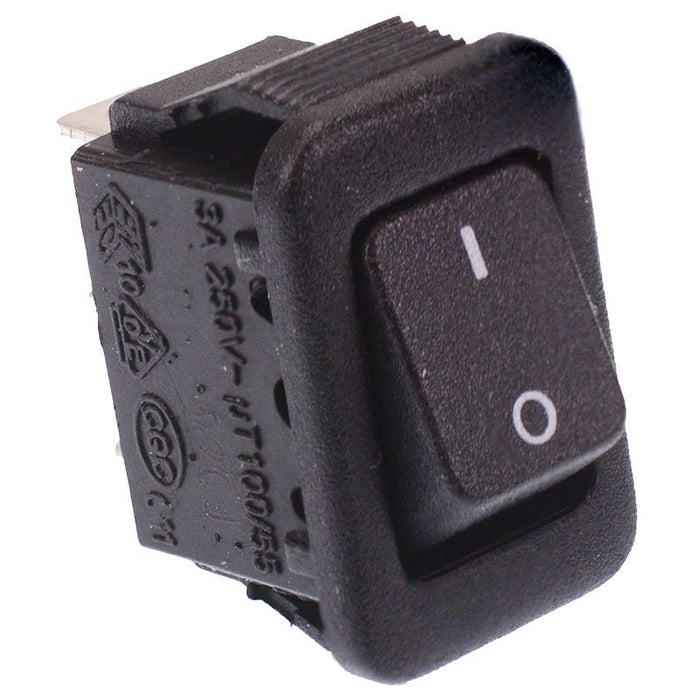

On-On Miniature Rectangle Rocker Switch SPDT 3A 250V
by Canal
SKU 482716
MPN: MR5-120-F5-BBWC-3
Availability:
813 in stock
Original price
£0.76
-
Original price
£0.76
Original price
£0.76
£0.76
£0.76
-
£0.76
Current price
£0.76
Mini rectangular rocker switch with an On-On action and SPDT contacts, housed in a compact package. The switch features solder terminals and snap-in mounting making them ideal for applications requiring a small but reliable switch.
On-On action SPDT contacts Solder terminals Panel cut-out: 13.8 x 9.2mm Dimensions: 16 x 15 x 10mm (Height x Length x Width) Rating: 6A 125VAC, 3A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Contact Configuration | SPDT |
| Contact Rating | 6A 125VAC, 3A 250VAC |
| Current Rating | 6A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | 0°C to +100°C |
| Panel Cut Out | 13.8 x 9.2mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
