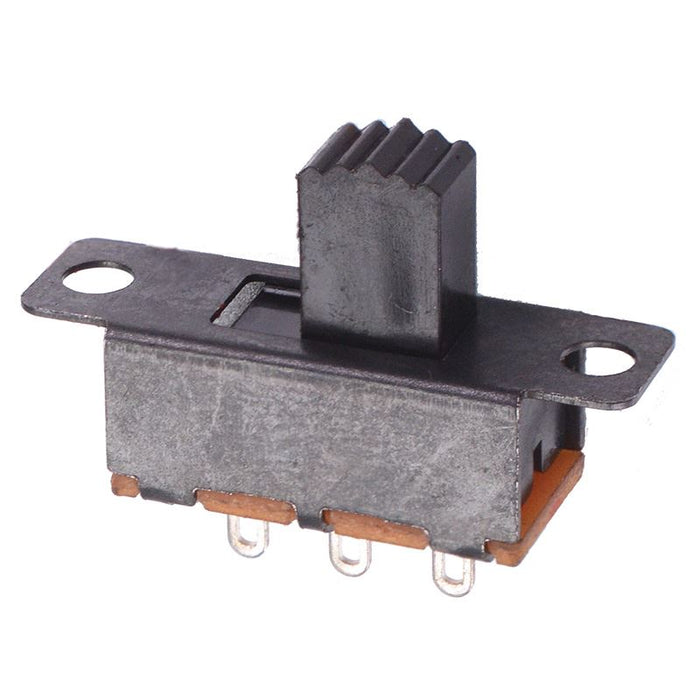

On-On Miniature Slide Switch SPDT 0.3A 50VDC

SKU 483283

MPN: 483283

Availability:
9794 in stock
Original price £0.18 - Original price £0.18
Original price
£0.18 Inc VAT
£0.18 - £0.18
Current price £0.18 Inc VAT
On-On mini slide switch featuring SPDT contacts, suitable for panel mount applications requring a low cost reliable switch.

  • On-On action
  • SPDT contacts
  • 0.3A 50VDC rating
  • 2.5mm mounting holes
  • Mounting holes 19mm apart
  • Panel cut-out: 15.7 x 7.5mm
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Contact configuration SPDT
    Contact rating 0.3A 50VDC
    Current rating 0.3A
    Moq 5
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Panel cut out 15.7 x 7.5mm
    Switch operation On-On
    Terminal type Solder
    Voltage rating 50VDC
