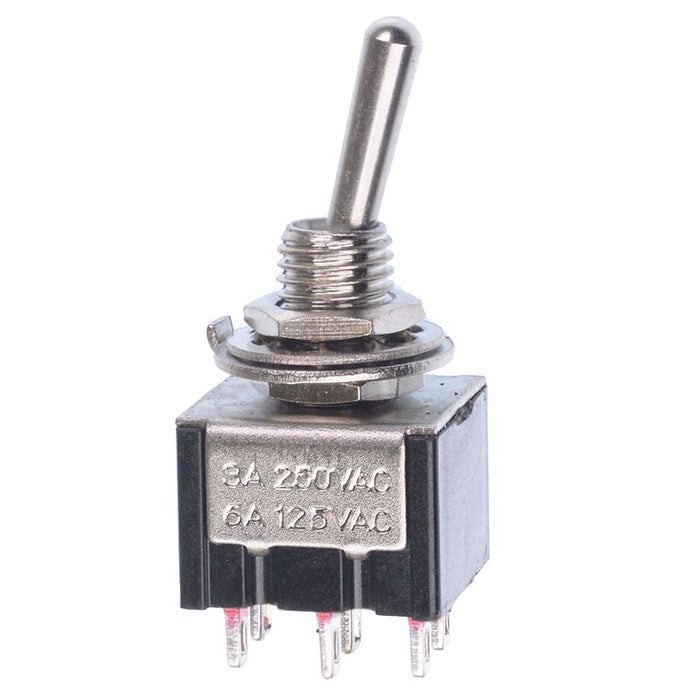

On-On Miniature Toggle Switch DPDT
SKU 112008
MPN: 112008
Availability:
Out of stock
Sold out
Original price
£0.87
-
Original price
£0.87
Original price
£0.87
£0.87
£0.87
-
£0.87
Current price
£0.87
Miniature size toggle switches suitable for a wide range of applications where a small reliable switch is required.
On-On action DPDT contacts 6mm panel cut-out Solder terminals Secured with nut Maximum current: 3A Maximum voltage: 250VAC Dimensions: 33.3 x 13.2 x 12.7mm (Height x Width x Length) Maximum Panel Thickness: 3mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | DPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 6mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
