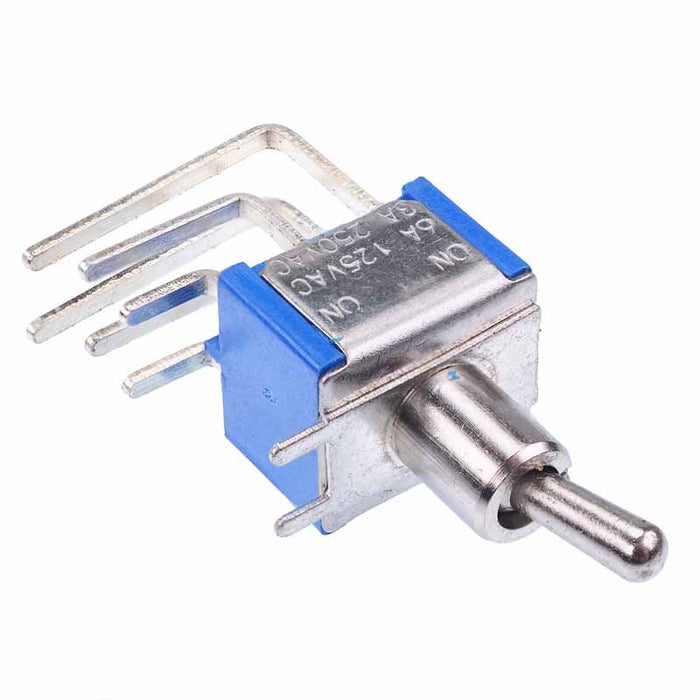

On-On Miniature Vertical PCB Toggle Switch DPDT
SKU 482849
MPN: 482849
Availability:
146 in stock
Original price
£0.74
-
Original price
£0.74
Original price
£0.74
£0.74
-
£0.74
Current price
£0.74
Mini On-On toggle switch featuring DPDT contacts and a compact size, suitable for mounting vertically directly to a PCB.
On-On action DPDT contacts Solder PCB terminals Rating: 6A 125VAC, 3A 250VAC Terminal pitch: 3.8mm Dimensions: 35 x 12.7 x 16.4mm (Length x Width x Height)
Specification
Actuation | Latching |
Back Order Lead Time | 40 Days |
Contact Configuration | DPDT |
Contact Rating | 6A 125VAC, 3A 250VAC |
Current Rating | 6A |
Electrical Life | 10,000 Cycles |
Illuminated | No |
Mounting Style | PCB |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -25°C to +85°C |
Pitch | 3.8mm |
Switch Operation | On-On |
Terminal Type | Through Hole |
Voltage Rating | 250VAC |
