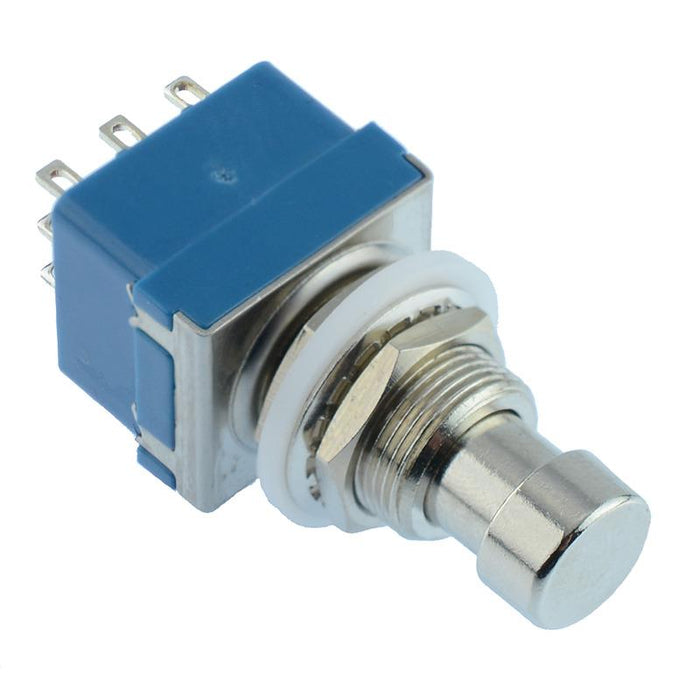

On-(On) Momentary Foot Switch 3PDT
SKU 551791
MPN: 551791
Availability:
38 in stock
Original price
£5.78
-
Original price
£5.78
Original price
£5.78
£5.78
£5.78
-
£5.78
Current price
£5.78
3PDT footswitch with a momentary push button action, ideal for machinery and music applications including foot pedals.
3PDT contacts Momentary On-(On) action Solder terminals Suitable for panel mounting and secured by nut Panel cut-out: 12mm Maximum Panel Thickness: 4mm Dimensions: 42.1 x 17 x 19.6mm (Height x Length x Width)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Contact Configuration | 3PDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 6mm |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
