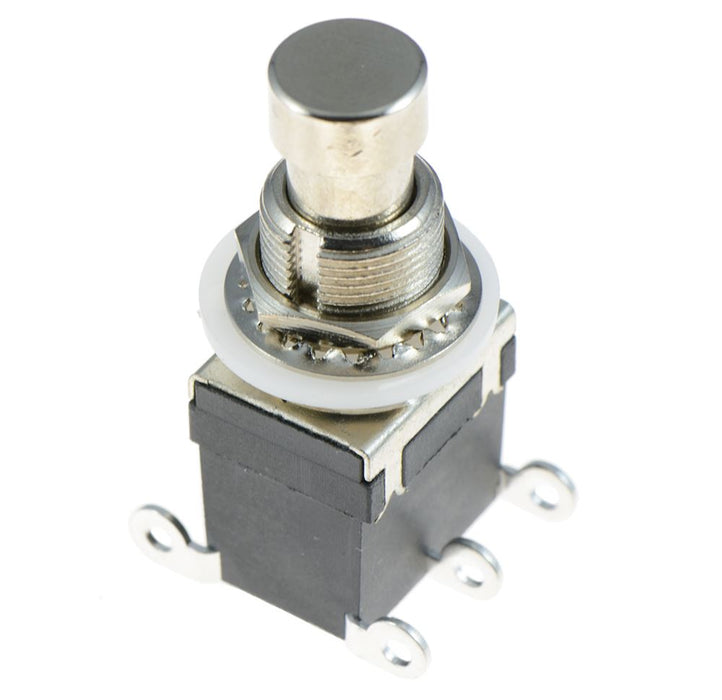

On-(On) Momentary Foot Switch Side Terminals DPDT
SKU 119004
MPN: 119004
Availability:
156 in stock
Original price
£2.02
-
Original price
£2.02
Original price
£2.02
Inc VAT
£2.02
-
£2.02
Current price
£2.02
Inc VAT
DPDT footswitch with a momentary push button action, ideal for machinery and music applications including foot pedals.
DPDT contacts Momentary action On-(On) operation Side mounted solder terminals Suitable for panel mounting and secured by nut Panel cut-out: 12mm Maximum Panel Thickness: 4mm Dimensions: 42.5 x 17.2 x 23.5mm (Height x Length x Width)
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Contact configuration | DPDT |
| Contact rating | 2A 250VAC |
| Current rating | 2A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
