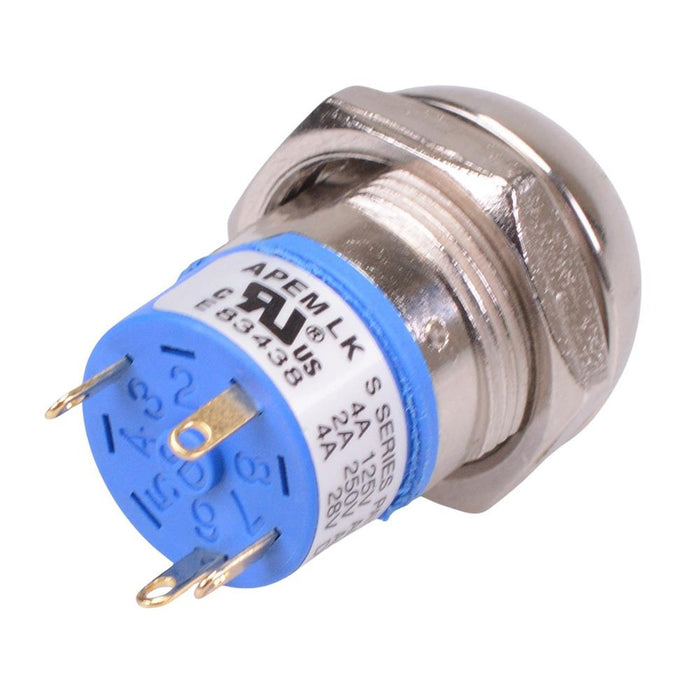

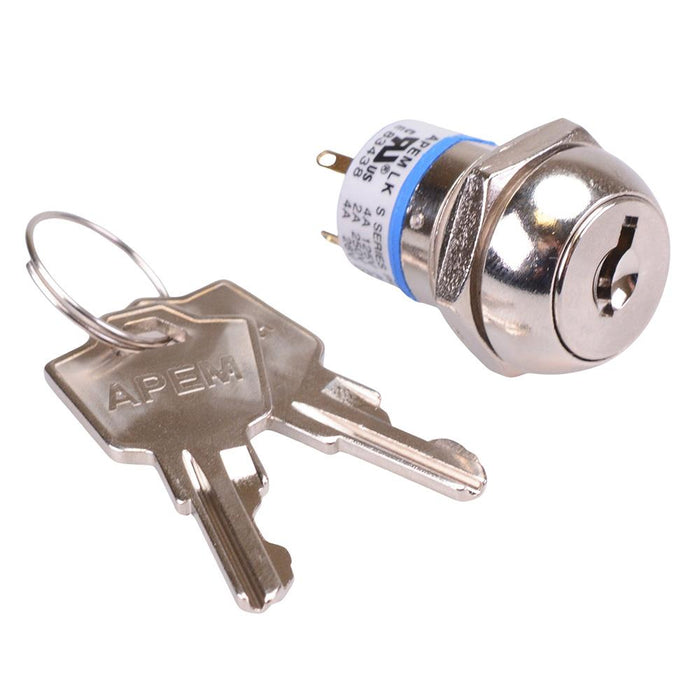

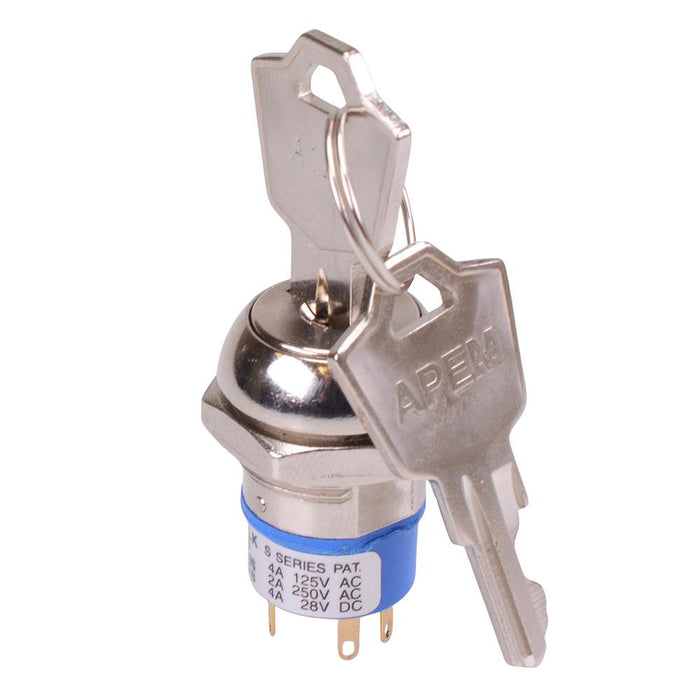

On-On-On 3 Way 19mm Key Switch SP3T 4A APEM
by APEM
SKU 492512
MPN: JD7509D1-A126
Availability:
944 in stock
Original price
£12.41
-
Original price
£12.41
Original price
£12.41
£12.41
-
£12.41
Current price
£12.41
The JD7509D1-A126 is a high quality key operated switch from the JD series manufactured by APEM. The switch features SP3T contacts and 3 maintained positions with key withdrawal in position 1,2,&3. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.
3 positions Maintained switching SP3T contacts Nickel plated finish Key withdrawal in position 1,2,3 Panel cut-out: 19mm Indexing: 45° Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC Mechanical and electrical life: 6000 cycles at full load Dimensions: 27.5 x 22mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Nickel Plated |
| Contact Configuration | SP3T |
| Contact Material | Gold Plated Copper Alloy |
| Contact Rating | 4A 125VAC / 28VDC, 2A 250VAC |
| Current Rating | 4A @ 125VAC / 28VDC |
| Electrical Life | 6000 Cycles |
| Key Index Angle | 45° |
| Key Withdrawal Position | 1, 2 & 3 |
| MOQ | 1 |
| Mounting Style | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 19mm |
| Product Series | JD |
| Switch Operation | On-On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
