(On)-On-(On) 3 Way Momentary 19mm Key Switch SP3T 4A LK5ENB126N3
by APEM
SKU 485818
MPN: LK5ENB126N3
Availability:
12 in stock
Original price
£16.24
-
Original price
£16.24
Original price
£16.24
Inc VAT
£16.24
-
£16.24
Current price
£16.24
Inc VAT

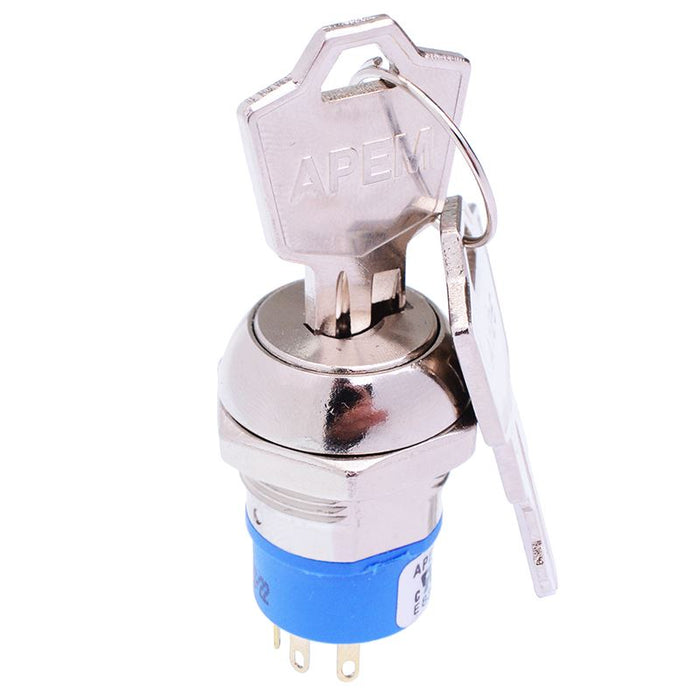

The LK5ENB126N3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features SP3T contacts and 3 positions with key withdrawal in position 1. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.
3 positions Momentary switching in position 2&3 SP3T contacts Nickel plated finish Key withdrawal in position 1 Panel cut-out: 19mm Indexing: 45° Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC Mechanical and electrical life: 6000 cycles at full load Dimensions: 28.8 x 22mm (length x diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Nickel Plated |
| Contact configuration | SP3T |
| Contact material | Gold Plated Copper Alloy |
| Contact rating | 4A 125VAC / 28VDC, 2A 250VAC |
| Current rating | 4A @ 125VAC / 28VDC |
| Electrical life | 6000 Cycles |
| Key index angle | 45° |
| Key withdrawal position | 1 |
| Mounting style | Panel Mount |
| Number of positions | 3 |
| Operating temperature | -30°C to +85°C |
| Panel cut out | 19mm |
| Product series | LK |
| Protection level | Gold Plated Copper Alloy |
| Switch operation | (On)-Off-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
