On-On PCB Slide Switch SPDT 0.3A 50VDC

SKU 482028

MPN: 483365

Availability:
537 in stock
Original price £0.44 - Original price £0.44
Original price
£0.44 Inc VAT
£0.44 - £0.44
Current price £0.44 Inc VAT

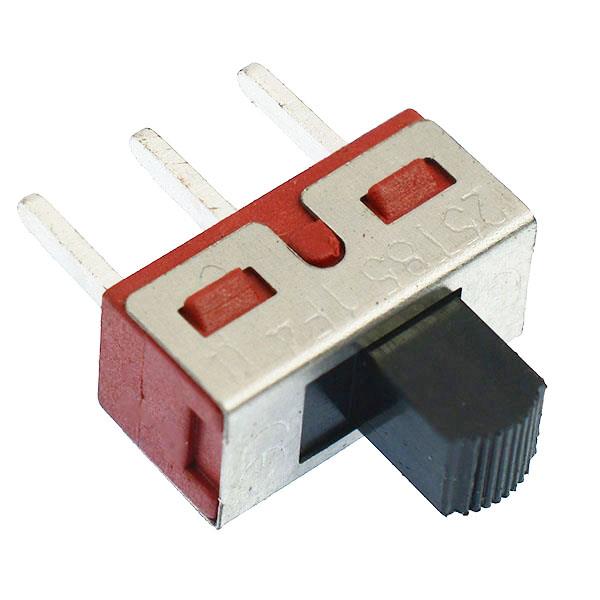

On-On vertical slide switch featuring SPDT contacts, suitable for PCB mounting.

  • On-On operation
  • SPDT contacts
  • Rating: 0.3A 50VDC
  • Actuator height: 5mm
  • Terminal pitch: 4.7mm
  • Dimensions: 7 x 12.8 x 18.8mm (Width x Length x Height)
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Contact configuration SPDT
    Contact rating 0.3A 50VDC
    Current rating 0.3A
    Electrical life 10,000 Cycles
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Switch operation On-On
    Terminal type PCB
    Voltage rating 50VDC
