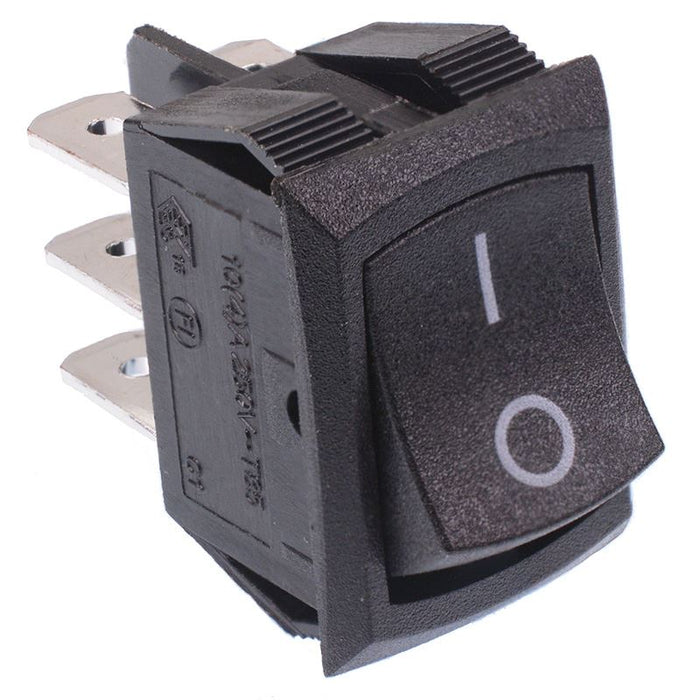

On-On Rectangle Rocker Switch DPDT 10A
by Canal
SKU 482710
MPN: MR3-220-C5-BBNWC
Availability:
199 in stock
Original price
£1.09
-
Original price
£1.09
Original price
£1.09
£1.09
£1.09
-
£1.09
Current price
£1.09
Rectangular rocker switch with an On-On action and DPDT contacts, housed in a compact package. The switch features quick connect terminals and snap-in mounting making them ideal for applications requiring a reliable easy to fit switch.
On-On action DPDT contacts 4.8mm quick conect terminals Panel cut-out: 19 x 13mm Dimensions: 26 x 21 x 15mm (Height x Length x Width) Rating: 10A 125VAC, 6A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Contact Configuration | DPDT |
| Contact Rating | 10A 125VAC, 6A 250VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 19 x 13mm |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
