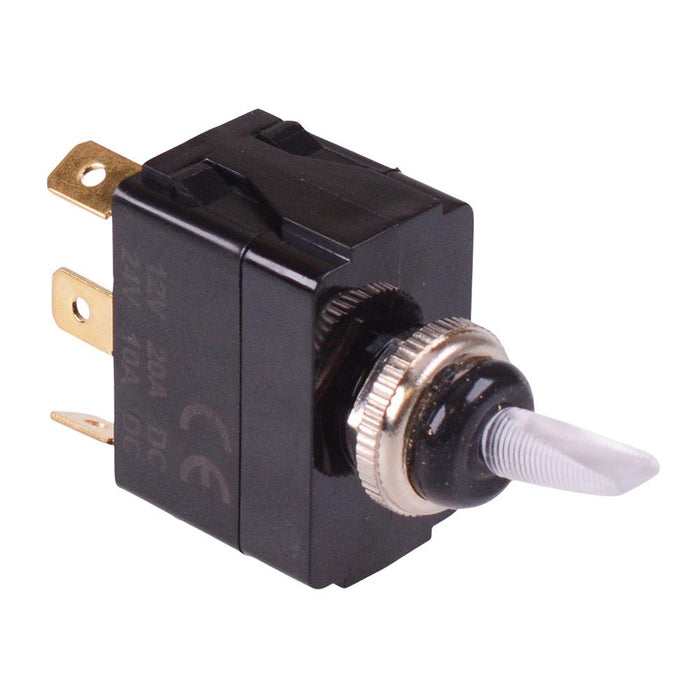

On-On Red LED illuminated Toggle Switch 20A 12V SPDT
SKU 489617
MPN: SF50770S-2
Availability:
Out of stock
Sold out
Original price
£4.09
-
Original price
£4.09
Original price
£4.09
£4.09
-
£4.09
Current price
£4.09

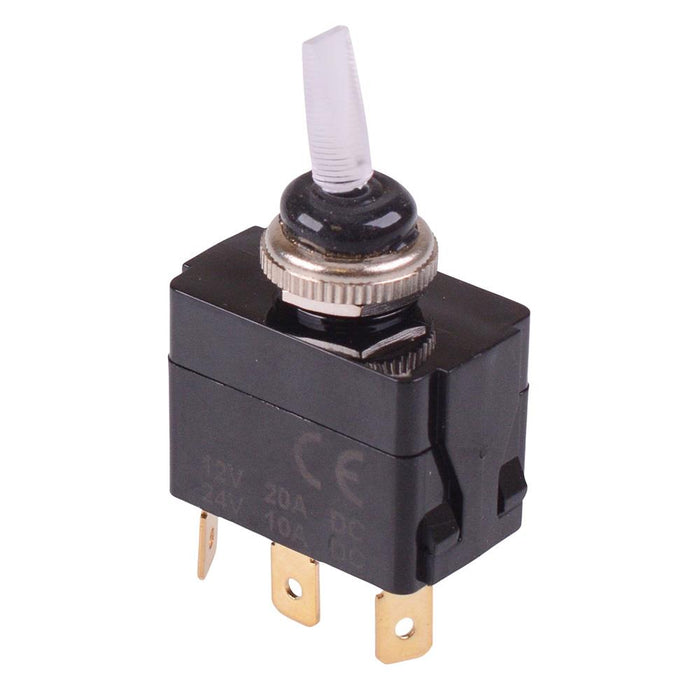

Red illuminated toggle switch featuring On-On action and SPDT contacts. The switch features a waterproof boot nut and 6.3mm quick connect terminals. The switch is suitable for a wide range of 12V or 24V automotive applications.

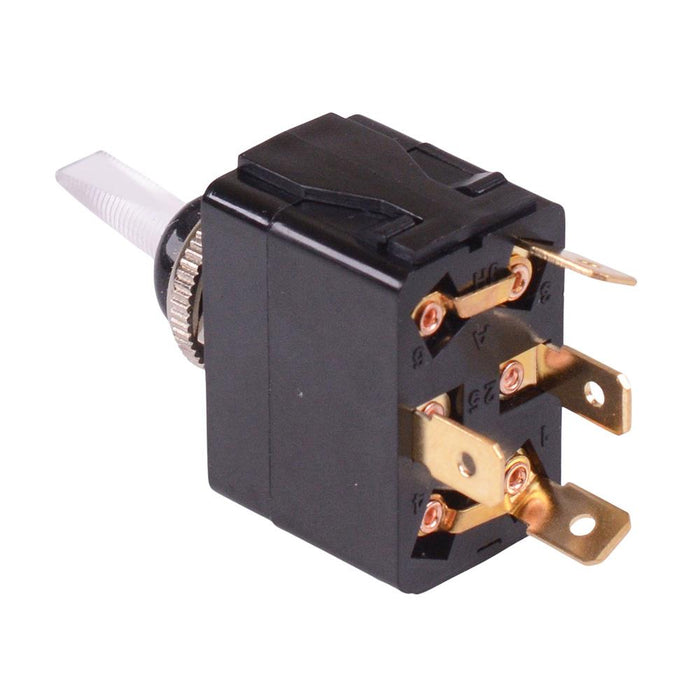

On-On action SPDT contacts 6.3mm quick connect terminals Rating: 12VDC 20A, 24VDC 10A Panel cut-out: 12mm Dimensions: 62.1 x 35.3 x 21.1mm (height x length x width)
Specification
Actuation | Latching |
Back Order Lead Time | 120 Days |
Contact Configuration | SPDT |
Contact Rating | 20A 12VDC, 10A 24VDC |
Current Rating | 20A |
Illuminated | Yes |
Illumination Colour | Red |
Illumination Voltage | 12V / 24V |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 3 |
Panel Cut Out | 12mm |
Panel Thickness | 3mm |
Switch Operation | On-On |
Terminal Type | Quick Connect |
Voltage Rating | 24VDC |
