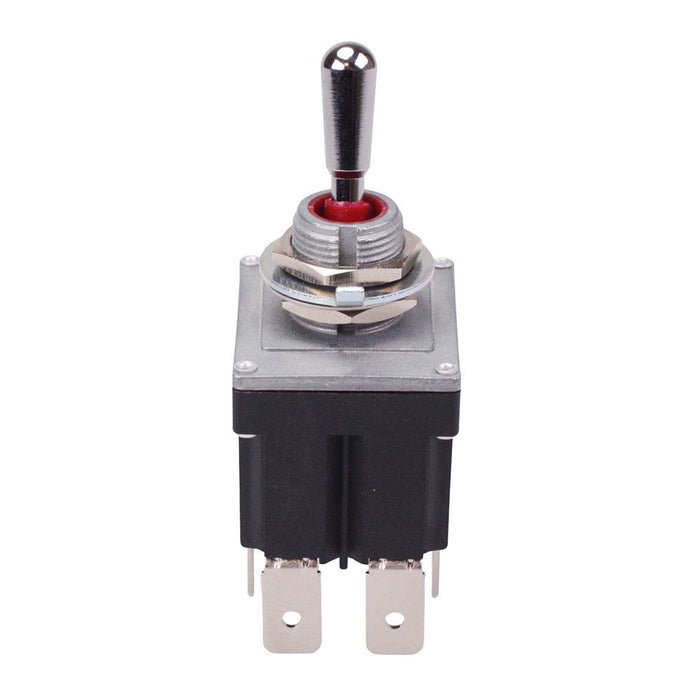

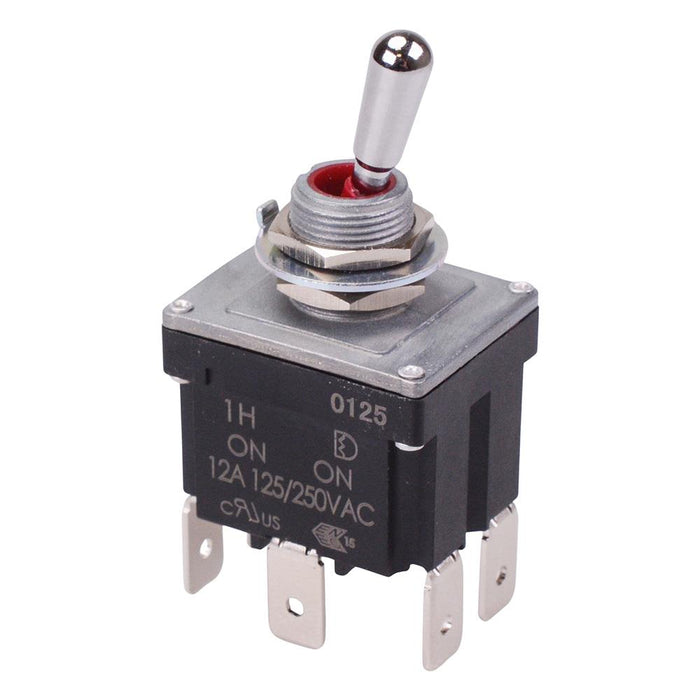

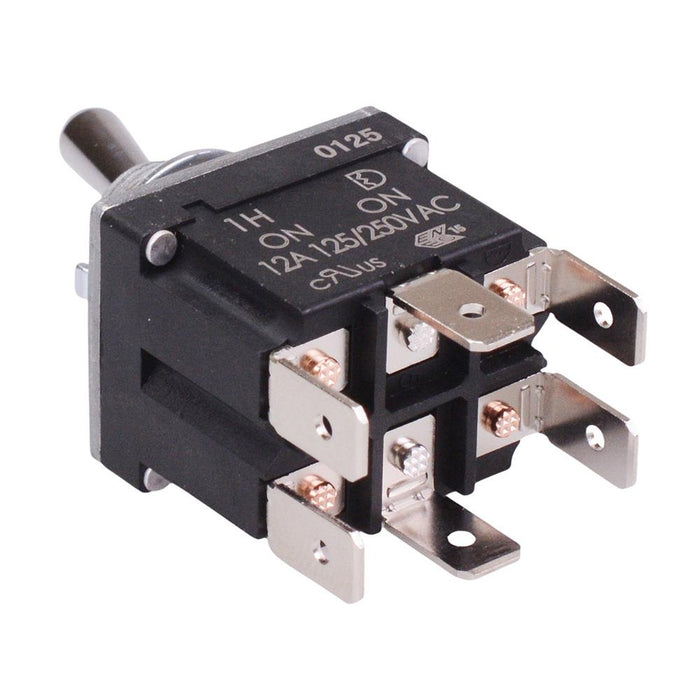

On-On Sealed 12mm Toggle Switch DPDT 12A IP68
by Dailywell
SKU 490919
MPN: 1HAD1T1B1M2N1S-5
Availability:
93 in stock
Original price
£8.74
-
Original price
£8.74
Original price
£8.74
£8.74
£8.74
-
£8.74
Current price
£8.74
On-On high current sealed toggle switch with IP67 protection rating and DPDT contacts. The switch features 6.3mm quick connect terminals and requires a 12mm panel cut-out diameter. The switch features a 12A current rating and is suitable for a wide range of demanding applications including automotive and marine.
On-On operation DPDT contacts Panel cut-out: 12mm Protection level: IP67 Rating: 12A 250VAC 6.35mm quick connect terminals Dimensions: 62.2 x 29.0 x 23.5mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver Plated Copper |
| Contact Rating | 12A 250VAC |
| Current Rating | 12A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 12mm |
| Protection Level | IP67 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
