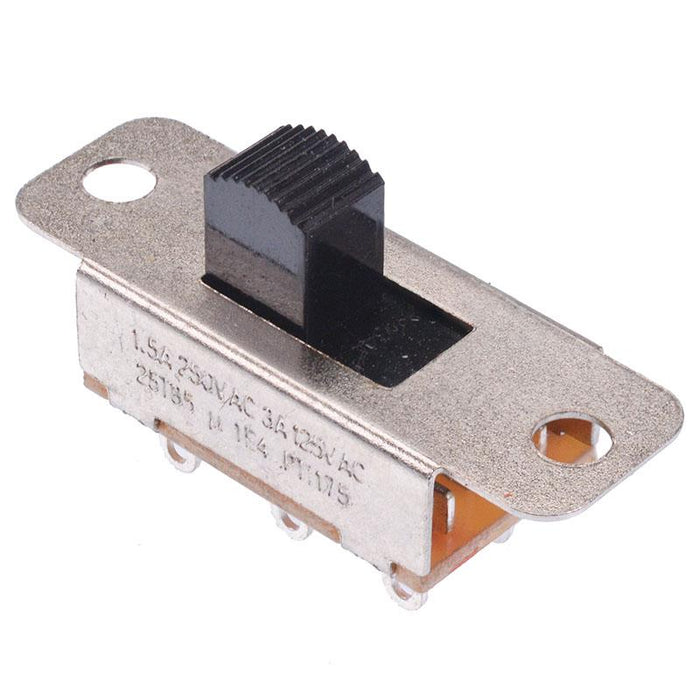

On-On Slide Switch DPDT 1.5A
SKU 550383
MPN: 550383
Availability:
1782 in stock
Original price
£0.43
-
Original price
£0.43
Original price
£0.43
£0.49
£0.49
-
£0.49
Current price
£0.49
On-On Slide Switch featuring solder terminals and DPDT contact configuration, suitable for a wide range of uses.
Rating: 1.5A 250VAC Actuator height: 7.0mm DPDT contacts 22.0 x 12mm panel cut out size M3 mounting holes
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Contact Configuration | DPDT |
| Contact Rating | 1.5A 250VAC |
| Current Rating | 1.5A |
| Electrical Life | 10,000 Cycles |
| MOQ | 5 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 22 x 12mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
