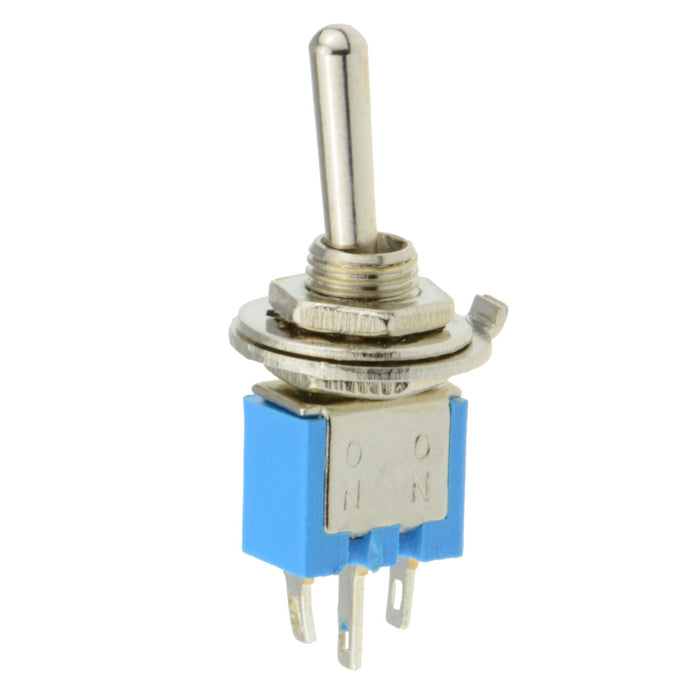

On-On Sub-Miniature Toggle Switch SPDT

SKU 112010

MPN: 112010

Availability:
141 in stock
Original price £0.59 - Original price £0.59
Original price
£0.59 Inc VAT
£0.59 - £0.59
Current price £0.59 Inc VAT
Sub miniature size toggle switches suitable for a wide range of applications where a small reliable switch is required.

  • On-On action
  • SPDT contacts
  • 5mm panel cut-out
  • Solder terminals
  • Secured with nut
  • Rating: 1.5A 250VAC, 3A 125VAC
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 1.5A 250VAC
    Current rating 1.5A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 5mm
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
