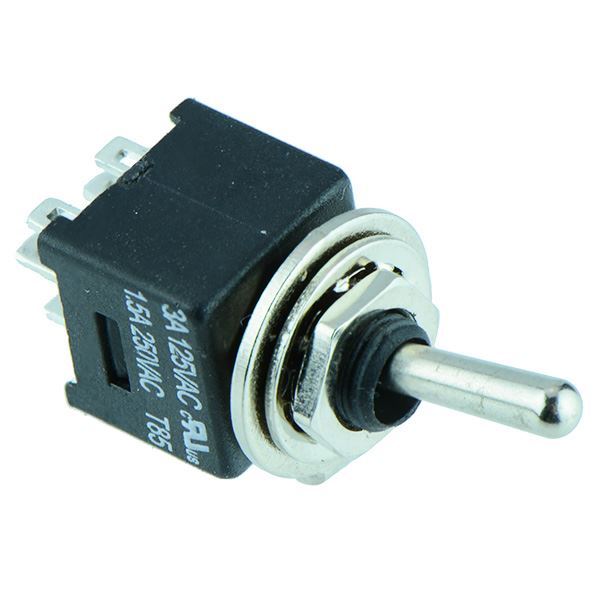

On-On Subminiature Toggle Switch DPDT MTE202A1
by SCI
SKU 551700
MPN: MTE202A1
Availability:
499 in stock
Original price
£1.22
-
Original price
£1.22
Original price
£1.22
£1.22
£1.22
-
£1.22
Current price
£1.22
Subminiature toggle switch featuring DPDT contacts and On-On function. Suitable for applications requiring a switch with a small footprint.
DPDT contacts On-On function Rating: 1.5A 250VAC Silver plated brass solder terminals 5.2mm panel cut-out 2mm maximum panel thickness
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | DPDT |
| Contact Rating | 1.5A 250VAC |
| Current Rating | 1.5A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +85°C |
| Panel Cut Out | 5.2mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
