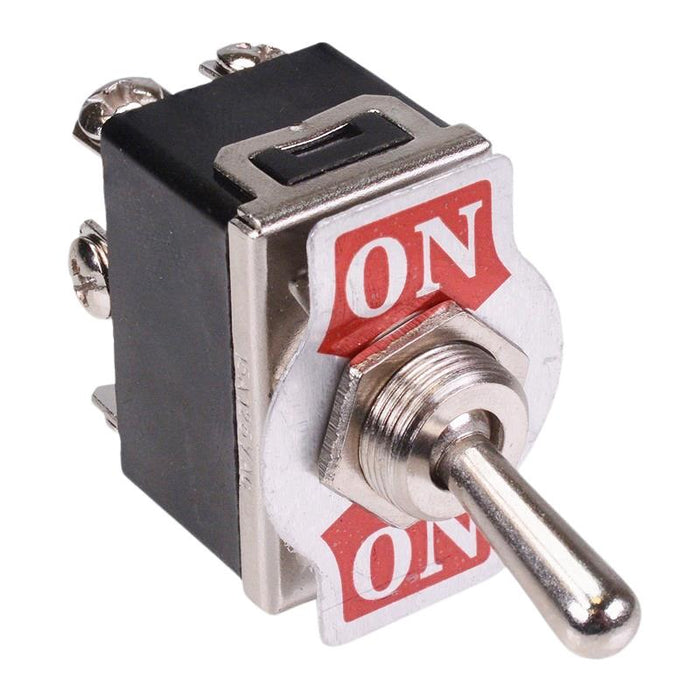

On-On Toggle Switch Screw Terminals 10A 250VAC DPDT
SKU 112031
MPN: 112031
Availability:
573 in stock
Original price
£2.14
-
Original price
£2.14
Original price
£2.14
£2.14
£2.14
-
£2.14
Current price
£2.14
Standard size toggle switch with screw terminals and supplied with indicator plate.
On-On action DPDT contacts 12mm panel cut-out 10A 250VAC rating
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | DPDT |
| Contact Rating | 10A 250VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12.2mm |
| Switch Operation | On-On |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
