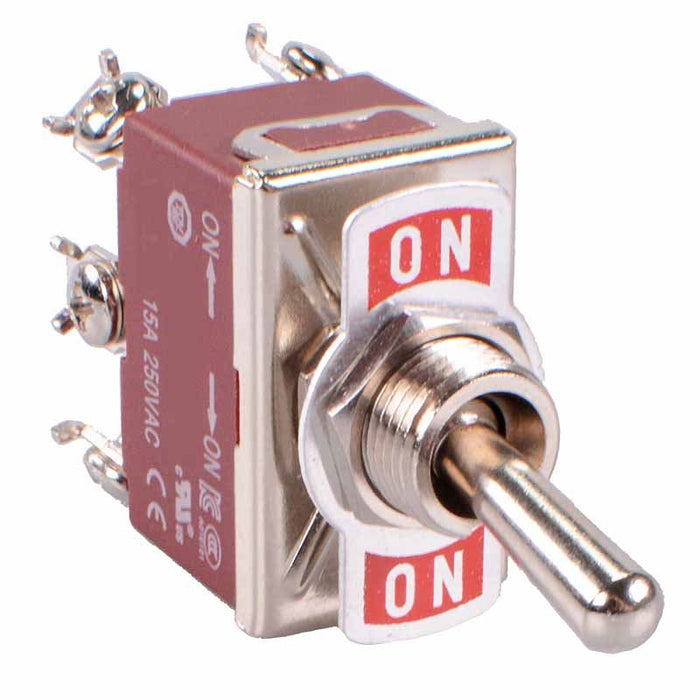

On-On Toggle Switch Screw Terminals 250V 15A DPDT
SKU 482559
MPN: 482559
Availability:
255 in stock
Original price
£2.75
-
Original price
£2.75
Original price
£2.75
£2.75
-
£2.75
Current price
£2.75
On-On toggle switch featuring DPDT contacts, a reliable mechanism and screw terminals suitable for panel mount applications.
Contact current: 15A Contact voltage: 250VAC 12mm panel cut-out Screw terminals Metal lever actuator Includes nameplate CCC, CE, TUV approved Dimensions: 59 x 32.5 x 20mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | DPDT |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 12mm |
| Protection Level | IP40 |
| Switch Operation | On-On |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
