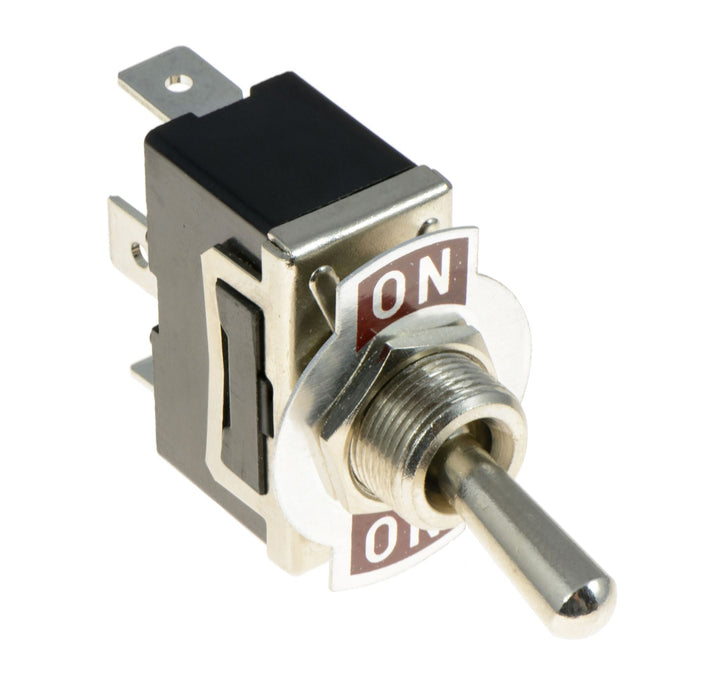

On-On Toggle Switch SPDT 15A 250VAC
SKU 112017
MPN: 112017
Availability:
288 in stock
Original price
£1.13
-
Original price
£1.13
Original price
£1.13
£1.13
£1.13
-
£1.13
Current price
£1.13
Standard toggle switch with SPDT contacts and on-on action. The switches are suitable for panel mounting and have quick connect terminals making them ideal for a wide range of applications.
SPDT contacts On-On action 6.3mm quick connect terminals Panel cut-out diameter: 12mm Maximum current: 15A Maximum voltage: 250VAC Maximum Panel Thickness: 5mm Dimensions: 56.3 x 29 x 15.8mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | SPDT |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12.2mm |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
