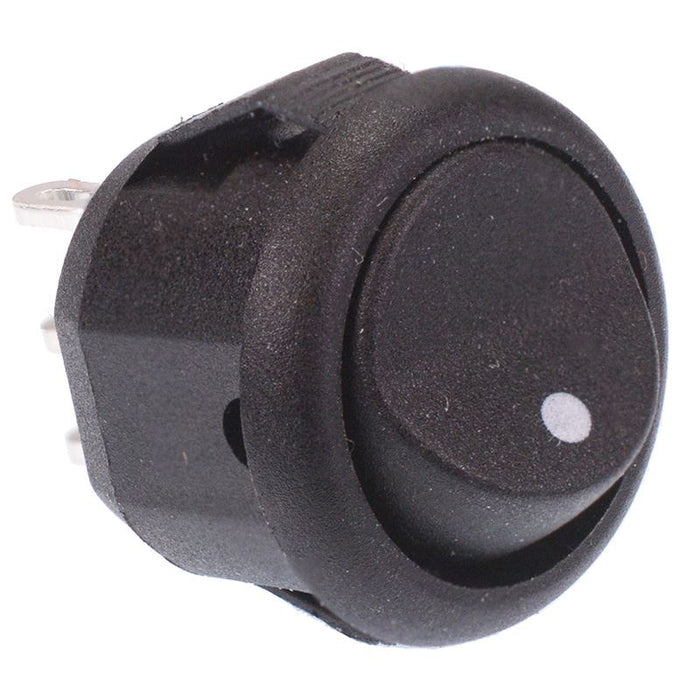

On-On Ultra Miniature 13mm Round Rocker Switch SPDT
by Canal
SKU 482719
MPN: SW-2738A
Availability:
603 in stock
Original price
£0.91
-
Original price
£0.91
Original price
£0.91
Inc VAT
£0.91
-
£0.91
Current price
£0.91
Inc VAT
Ultra mini circular rocker switch with an On-On action and SPDT contacts, housed in a compact package requiring a 13mm panel cut-out diameter. The switch features solder terminals and snap-in mounting making them ideal for applications requiring a very small but reliable switch.
On-On action SPDT contacts Solder terminals Panel cut-out: 13mm Dimensions: 19.6 x 15mm (Height x Diameter) Rating: 3A 125VAC, 1.5A 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Contact configuration | SPDT |
| Contact rating | 3A 125VAC, 1.5A 250VAC |
| Current rating | 3A |
| Electrical life | 30,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Panel cut out | 13mm |
| Panel thickness | 2mm Maximum |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 250VAC |
