On-On Voltage Selector Slide Switch DPDT

SKU 490369

MPN: RE-S-SS38-22J29-EG-7.1

Availability:
200 in stock
Original price £0.48 - Original price £0.48
Original price
£0.48
£0.48 - £0.48
Current price £0.48

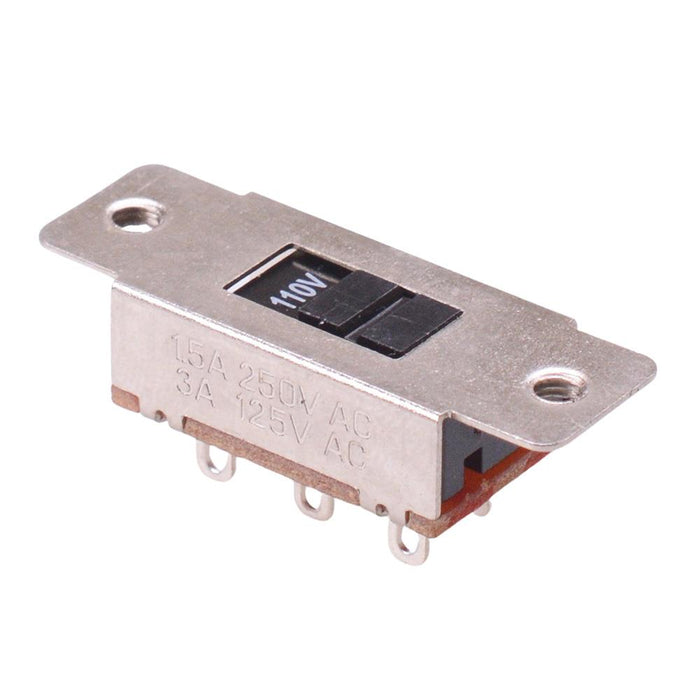

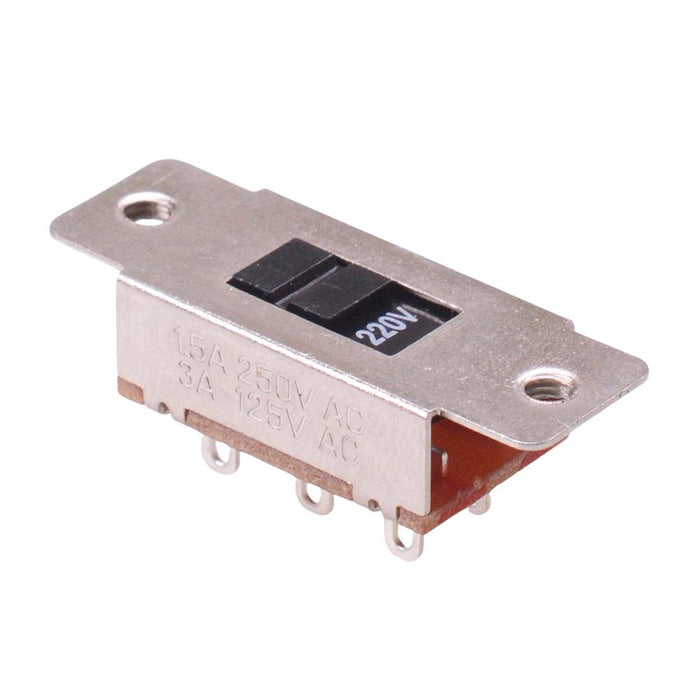

On-On slide switch featuring solder terminals and DPDT contact configuration, suitable for switching between 110V and 220V.

  • Rating: 1.5A 250VAC
  • Flush actuator
  • DPDT contacts
  • 22.2 x 13mm panel cut out size
  • M3 mounting holes
  • Dimensions: 35.4 x 12.9 x 12.9mm (length x width x height)
  • Specification
    Actuation Latching
    Back Order Lead Time 120 Days
    Contact Configuration DPDT
    Contact Rating 1.5A 250VAC
    Current Rating 1.5A
    Electrical Life 10,000 Cycles
    MOQ 1
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 2
    Switch Operation On-On
    Terminal Type Solder
    Voltage Rating 250VAC
