On-On Voltage Selector Slide Switch DPDT 6A
SKU 483112
MPN: 483112
Availability:
465 in stock
Original price
£0.67
-
Original price
£0.67
Original price
£0.67
£0.67
£0.67
-
£0.67
Current price
£0.67

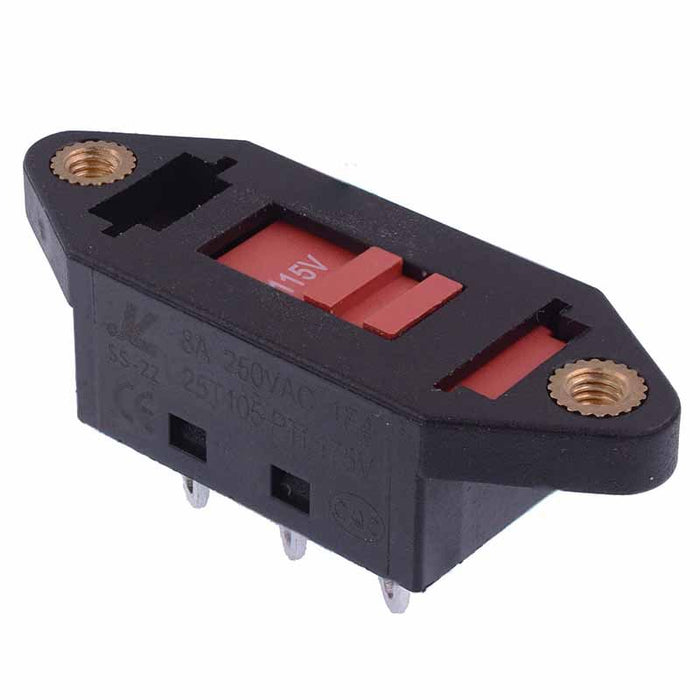

On-On changeover voltage selector switch 115V and 230V markings. The switch features a flush actuator preventing accidental operation and is suitable for mounting to a panel.
On-On action DPDT contacts Solder terminals Rating: 6A 250VAC, 12A 125VAC M3 mounting holes Mounting hole pitch: 34.2mm Dimensions: 41.5 x 14.2 x 18mm (Length x Width x Height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 |
| Contact Configuration | DPDT |
| Contact Rating | 6A 250VAC, 12A 125VAC |
| Current Rating | 12A |
| Electrical Life | 10,000 Cycles |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
