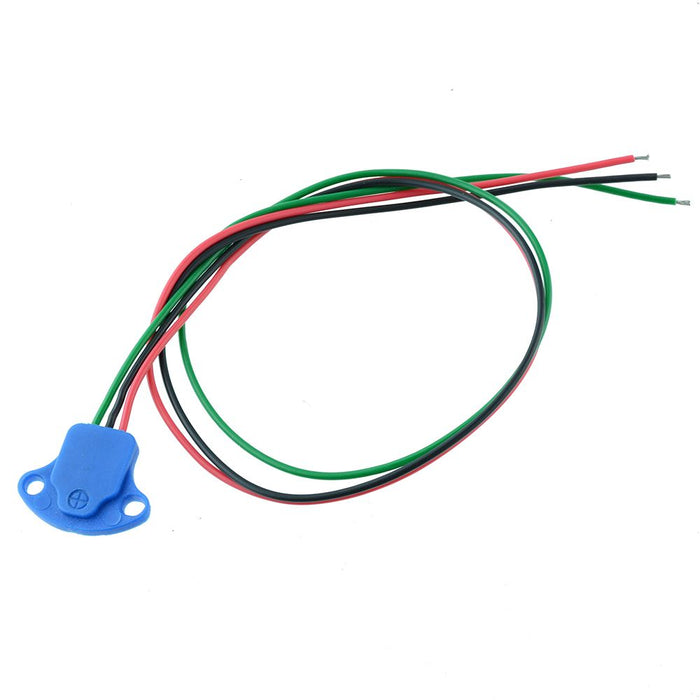

Open Collector Hall Effect Bipolar Proximity Sensor 4.5 to 24VDC 5.2mA - PGN-SP-003, S1856C
by Comus
SKU 552620
MPN: S1856C
Availability:
Out of stock
Sold out
Original price
£7.16
-
Original price
£7.16
Original price
£7.16
Inc VAT
£7.16
-
£7.16
Current price
£7.16
Inc VAT
The PGN-SP-003 is a digital hall effect proximity sensor housed in a low profile housing suitable for flange mounting. The sensor is suitable for applications including door position sensing, flow sensing, pedal switch.
Capable of millions of operations Meets IEC529 IPX5 for water protection Reverse battery protection to -24VDC Latches in presence of south pole magnet Unlatched in presence of north pole magnet Supply voltage: 4.5-24V DC Supply current: 5.2mA Max Output type: 3-Wire sink
Specification
| Back order lead time | 180 Days |
| Operating temperature | -40°C to +85°C |
| Operating voltage | 4.5-24VDC |
| Output current | 20mA |
| Output type | Open Collector |
| Supply current | 5.2mA Max |
