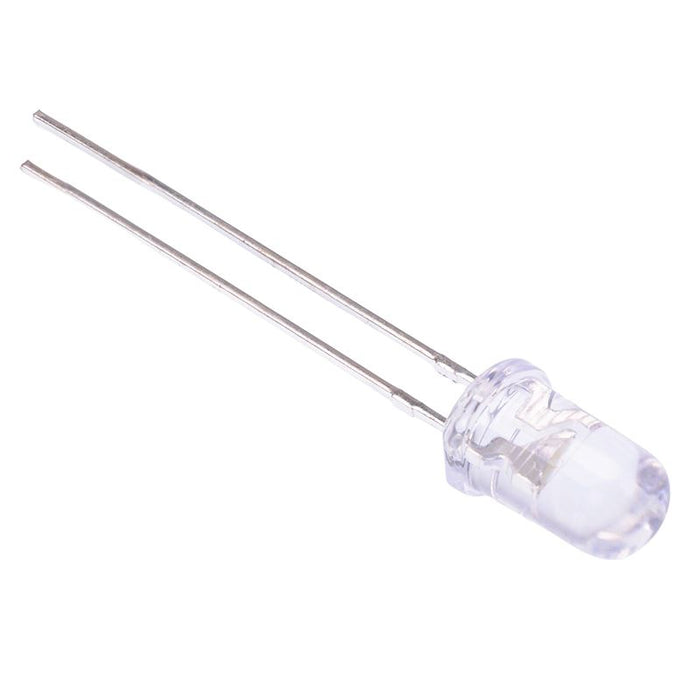

Orange 5mm Water Clear LED 2200mcd 30°
by Luckylight
SKU 484845
MPN: 503AC2V-2BD
Availability:
3376 in stock
Original price
£0.11
-
Original price
£0.11
Original price
£0.11
£0.11
£0.11
-
£0.11
Current price
£0.11
Orange 5mm LED featuring a water clear package and 2200mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 2200mcd Wavelength: 605nm Viewing angle: 30° Forward voltage: 2.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Water clear lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 45 |
| Colour | Orange |
| Diameter | 5mm |
| Forward Current | 25mA |
| Forward Voltage | 2.0V |
| Lens Colour | Clear |
| Lens Shape | Round |
| Luminous Intensity | 2200mcd |
| Mode | Constant |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 5mm |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Viewing Angle | 30° |
| Wavelength | 605nm |
