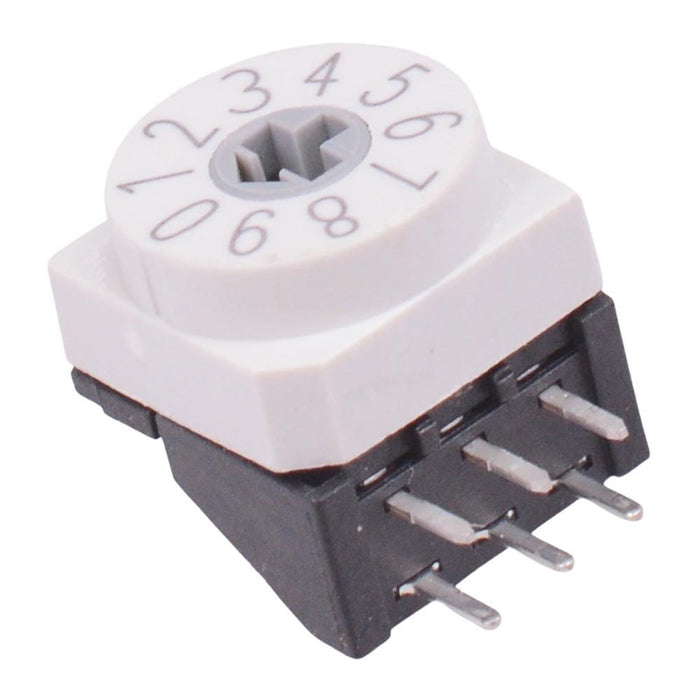

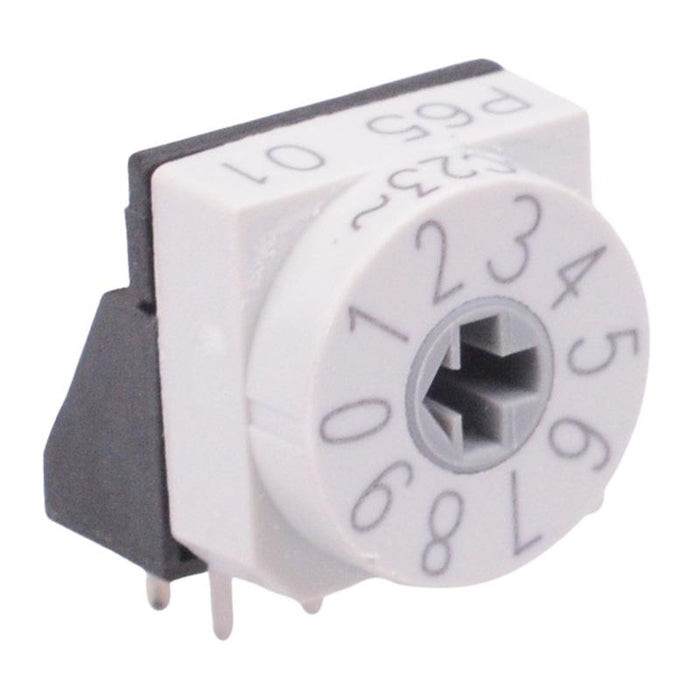

P65THR701L254 BCD Rotary Coded Switch Right Angle APEM
by APEM
SKU 492530
MPN: P65THR701L254
Availability:
971 in stock
Original price
£3.55
-
Original price
£3.55
Original price
£3.55
£3.55
-
£3.55
Current price
£3.55
The P65THR701L254 is a subminiature rotary code switch by APEM, featuring a segment wheel actuator and bcd code.
Segment wheel actuator BCD code Operating voltage: 42VDC max Contact load static: ≤0.2A Contact load dynamic: ≤0.1A Terminal pitch: 2.54 x 2.54mm Dimensions: 10.0 x 10.0mm (length x width)
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Gold Plated Copper Alloy |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Operating Temperature | -60°C to +125°C |
| Pitch | 2.54mm |
| Terminal Type | Solder |
| Voltage Rating | 42VDC |
