Panel Mount Mega Fuse Holder

SKU 482292

MPN: 482292

Availability:
186 in stock
Original price £7.46 - Original price £7.46
Original price
£7.46 Inc VAT
£7.46 - £7.46
Current price £7.46 Inc VAT

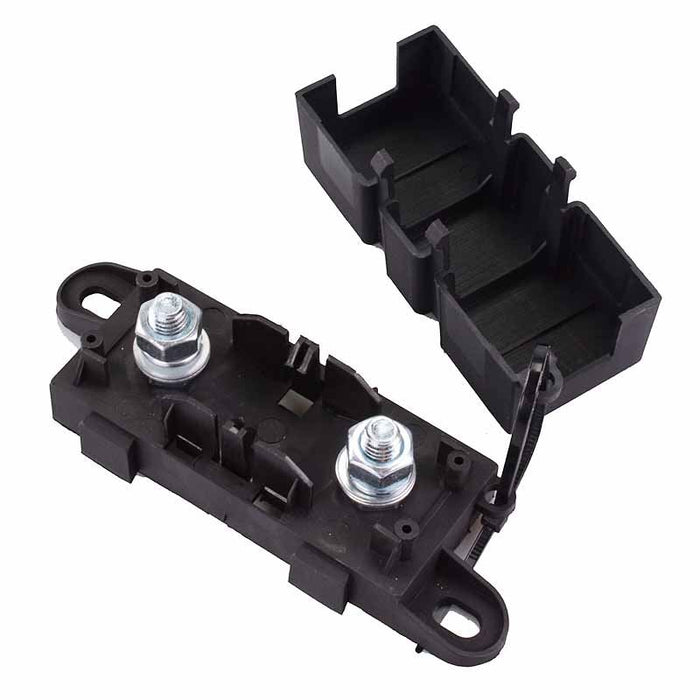

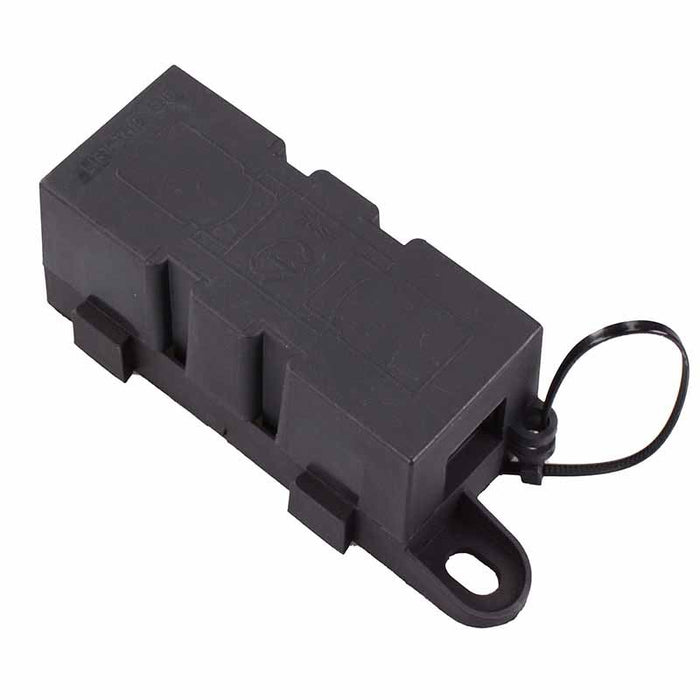

Mega fuse holder suitable for panel mount automotive applications. The cable connections are made using the 2 x 8mm studs, and the holder can be mounted onto a firm surface using the 2 fixing points located at the ends of the unit. The design allows multiple holders to be clipped together to form a fuse block.

  • Colour: black
  • Voltage rating: 32VDC
  • Current rating: 500A
  • Cable size: 70mm2 max
  • Fixing hole diameter: 6.0mm
  • Includes M8 studs, nuts and washers
  • Dimensions: 96.5 x 39 x 39mm (L x W x H)
  • Specification
    Back order lead time 30 Days
    Body material Nylon 6.6
    Compatible wire size 70mm² Max
    Current rating 500A
    Fuse size Mega
    Mounting style Panel Mount
    Number of fuses 1
    Voltage rating 32VDC
    Wire size 70mm² Max
